Console with microphone (PZA)

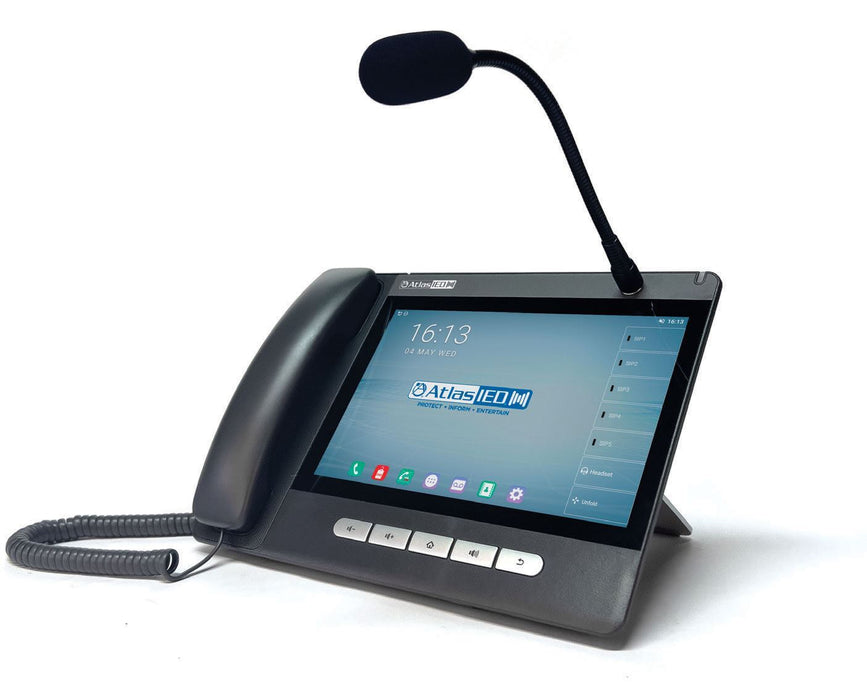

PoE IP Console with Gooseneck Microphone and Headset
AtlasIED IP-CONSOLE-GH is a VoIP communications console equipped with a large 10.1-inch color touchscreen, gooseneck microphone, handset and built-in speakerphone used in the IPX unified communications ecosystem. The AtlasIED IP-CONSOLE-GH registers directly with Singlewire’s InformaCast® notification application to serve as a system network administrative display phone or paging master station.
The gooseneck microphone, built-in speaker, and easy-to-use graphical interface allow the operator to select any or all zones for live, day-to-day announcements or a single zone for two-way communication. The operator can also choose to select a single zone and use the phone for private intercom sessions.
IP-CONSOLE-GH supports the configuration of up to 112 virtual DSS (Direct Station Select) keys, each with its own custom color and naming scheme to match the InformaCast® Fusion Command Center button layout, which synchronizes with user-defined color styles for InformaCast®. Normal, warning, and emergency notifications.
Its large, easy-to-use graphical interface with a 10.1-inch color touchscreen makes it easy to navigate through configured virtual DSS (Direct Station Select) keys and launch scheduled InformaCast critical alerts, manual bells, pre-recorded and scheduled events for quick response and clear communications with AtlasIED IPX Series speakerphones.
AtlasIED IP-CONSOLE-GH can also register as a SIP phone directly to a SIP server or VoIP communications manager, including hosted and on-premise infrastructure calling platforms, and supports 20 SIP lines.
-
Network functions
- Dynamic or static IP address
- Ethernet IEEE 802.3 10/100/1000 Base-T
- Complies with IEEE 802.3af
- Dual bridge port for PC bypass
- Built-in 2.4G/5G Wi-Fi
- IPv6
-
Audio codec support
- G.711 u-law / a-law (16 kbit/s)
- Wideband audio G.722 (64 kbits/s), Opus
-
Video codec support
- H.264/H.265 (optional) 780P/1080P
-
Automatic registration
- SLP or DNS-SRV for single-wire applications
- AtlasIED Discover Tool
-
Static configuration
- HTTP GUI for static configuration
-
Additional features
- 10.1" 1280 x 800 color touchscreen
- 112 programmable one-touch virtual DSS keys
- Supports 20 SIP lines
- Compatible with most major calling platforms (e.g. Asterick®, Broadsoft®, 3CX®, Metaswitch®, Elastix®, Avaya® and others)
- Built-in Bluetooth 5.0
- Direct communication to IPX via multicast
- Integrated gooseneck microphone, headset, and conference speakerphone
- Support with 2 adjustable angles of 40 and 50 degrees
