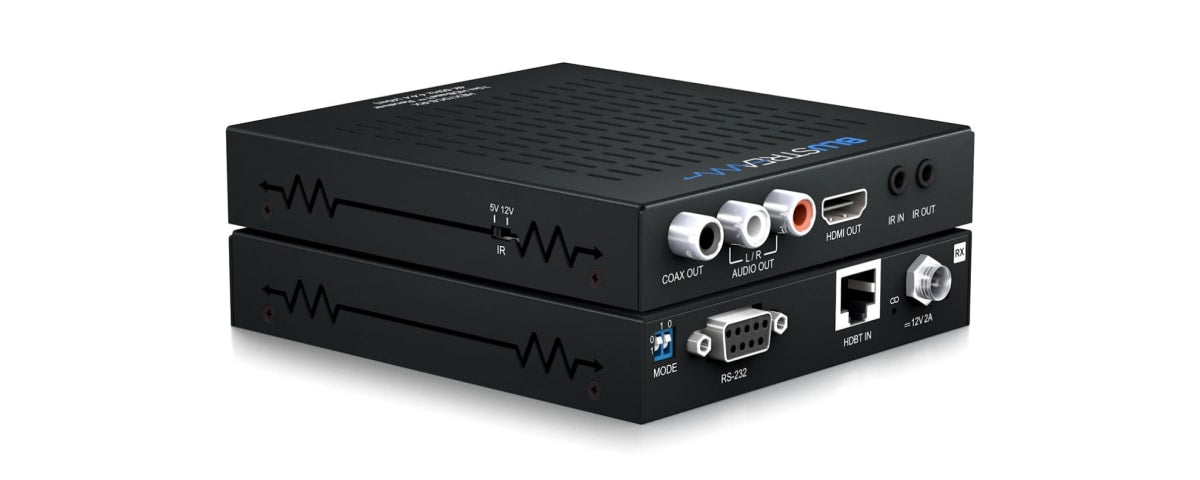

HEX100CS-RX (PZA)

Our HEX100CS-RX HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseTTM Receiver offers market-leading features and exceptional value using CSC technology.

The product extends HDMI, IR & RS-232, and PoC addressable cables up to lengths of 100m (4K at 70m). The receiver features simultaneous analog stereo and digital audio transmission.

Advanced HDBaseT™ technology provides video and audio distribution over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 specification 18Gbps including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 70m
Extend HDMI 1080p video transmission up to 100m
- Supports all industry-standard video resolutions including VGA-WUXGA and 480i-4K
Supports all popular HDMI digital audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X
HDMI Recruitment to Help Solve HDMI HDCP, Compatibility, and Handshake Issues
Converts HDMI audio to analog L/R audio and coaxial digital outputs simultaneously
Supports RS-232 Directed Pass-Through
Supports bi-directional IR passthrough
Advanced EDID Management
HDCP 2.2 compliant

Specs:

Audio output connectors: 1 x RCA (SPDIF) and 2 x analog RCA (left/right)
IR output ports: 1 x 3.5mm mono jack
IR input ports: 1 x 3.5mm stereo jack
RS-232 Serial Port: 1 x DB-9 Female
Video Output Connectors: 1 x HDMI Type A, female
Video Input Connectors: 1 x HDBaseT™ RJ45 Connector
Power supply: 12V/2A DC, screw type connector (not supplied)
Power consumption: 5.6W
Unit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
Unit weight: 0.35kg (excluding accessories)
Shipping weight: 0.5kg
Operating Temperature: 32oF to 104oF (0oC to 40oC)
Storage Temperature: 4oF to 140oF (-20oC to 60oC)
- Mounting kit included
