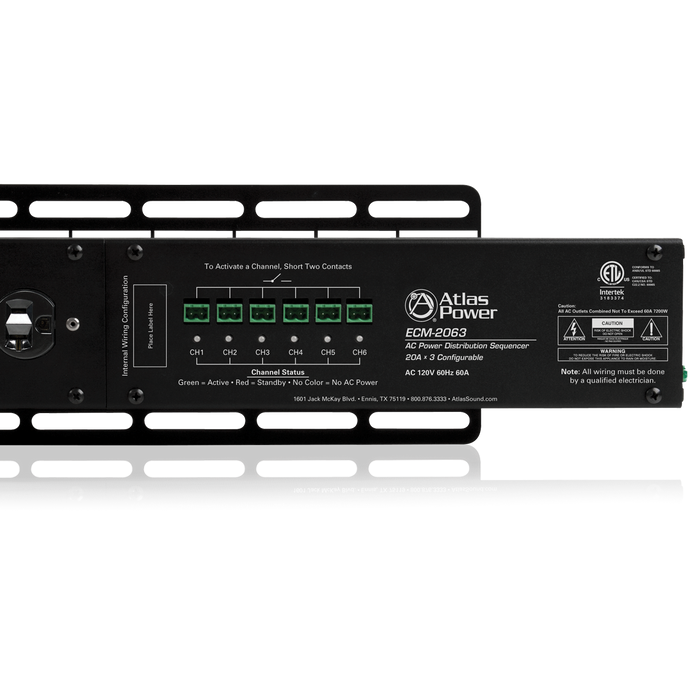

THE ECM-2063 (PZA)

The Atlas Power ECM-2063 was designed to be flexible, incorporating features that allow it to be used in a variety of applications. Sequencing outputs allow you to turn equipment on or off in a particular order. This prevents a surge of current that could damage connected electronic components and eliminates the audible clicks that often occur with unsequenced power activation.

The Atlas Power ECM-2063 AC Power Distribution Sequencer raceway system is designed to provide the installer/contractor with flexibility in current requirements based on the needs of the equipment to be connected to the raceway. The ECM-2063 accepts up to three independent 20A, 120VAC lines, allowing up to a total of 60A to be split across the entire system. The ECM-2063 features 6 individual 120V AC output sections that can be activated individually or in sequential order. Activating a section or sequential order can be achieved via a remote switch or by using a sequence controller such as the Atlas Power TSD-SEQ6.

The ECM-2063 features a total of 12 120 VAC outlets that are divided into 6 sections. Each section has an activation control port and a bi-color LED. This LED will illuminate green to indicate that AC voltage is present on that specific AC section when activated or triggered and the LED will illuminate red to indicate that the section is in standby mode. Activation is easy, simply short the two control port pins for the specific channel you wish to activate. This can be accomplished within a few feet of the ECM-2063 or several feet away using an Atlas Power sequence controller or via a switch.
