DPA-AMIX

DPA-AMIX

by ATLAS SOUND
Sold out
$ 13,687.07
MEASURES
COLOR: N/A

Mixer Card (PZA)

Analog mixer accessory card for DPA amplifiers

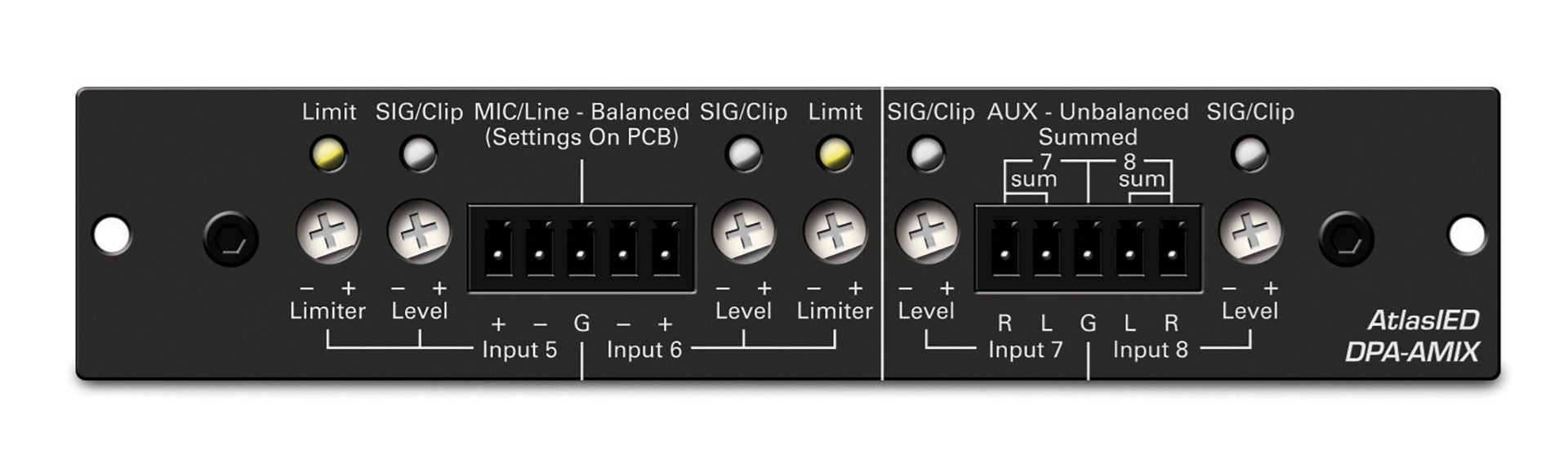

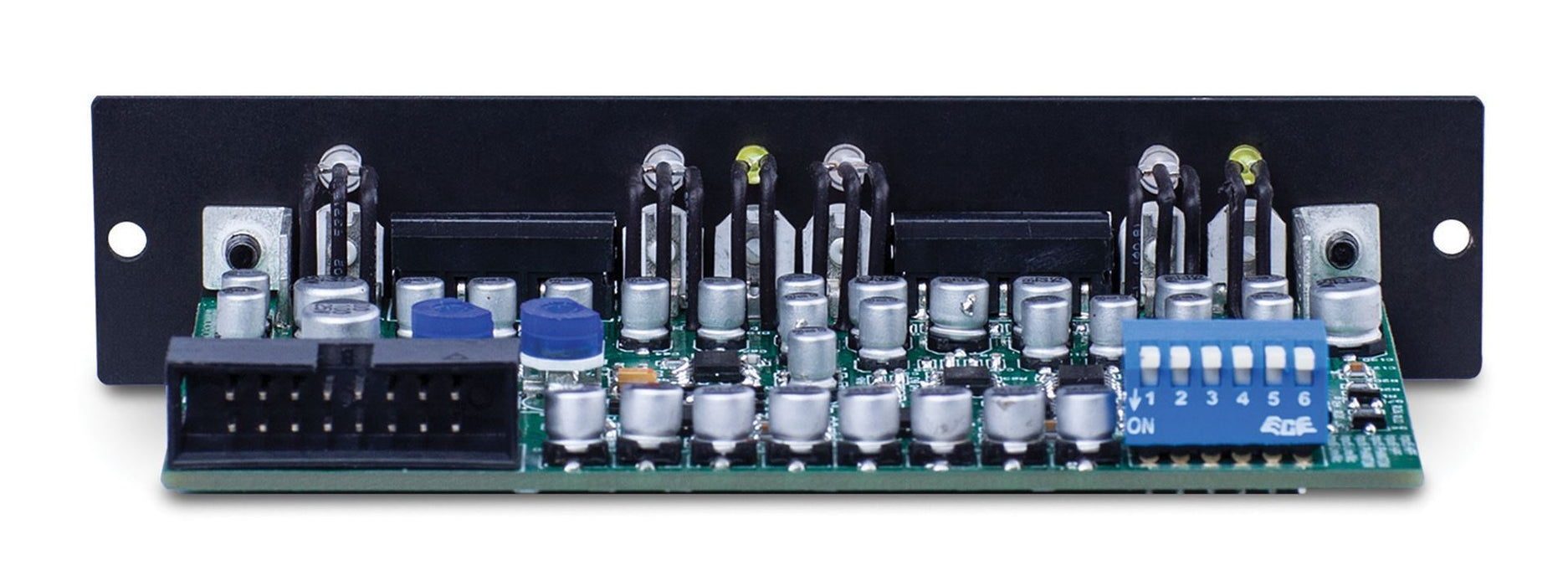

The DPA-AMIX accessory card is designed to work with DPA series amplifiers, which include an accessory card slot on the rear panel. The unit features four inputs: two mic/line inputs and two auxiliary line inputs. The mic/line inputs are user-selectable and include phantom power, a 120 Hz Hi-Pass filter, and a variable limiter on both inputs. The two auxiliary inputs feature a mono active summing circuit, allowing two stereo sources to be connected to the amplifier simultaneously. All inputs have separate level controls and signal and clip LEDs.

CHARACTERISTICS:

  • 2 balanced microphone/line inputs
  • 2 summed mono inputs or 1 stereo or AUX line
  • Switchable 24V phantom power
  • 2 variable input limiters on microphone inputs
  • Assignable 120 Hz/12 dB high-pass filter for mic/line inputs
  • Recessed level controls
  • Input signal and clip indicator LEDs
