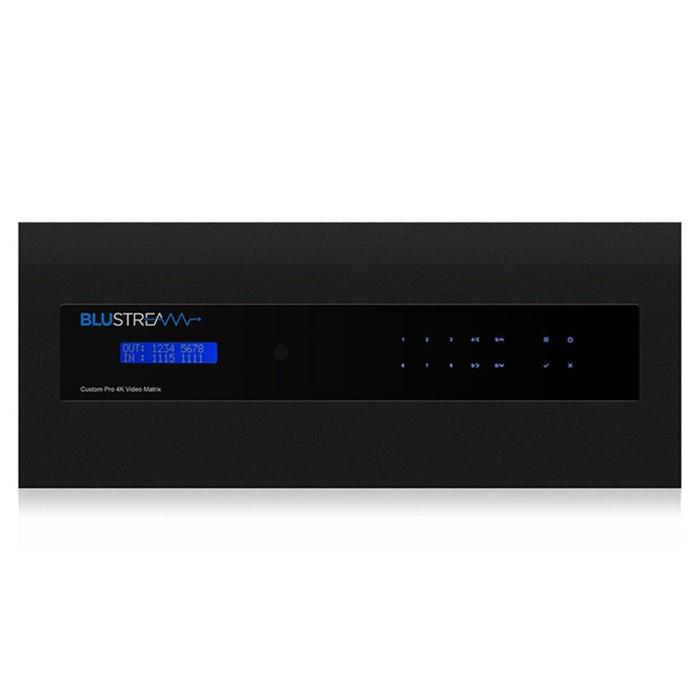

CUSTOMPRO-HUB16 (PZA)
Custom CSC HDBaseT™ Pro 16x16 Matrix
The Custom Pro 4K switcher reaches new levels of performance and flexibility. AV installers can now easily specify the desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro switcher has been specifically designed to operate in challenging AV environments. Its rugged housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio output, simultaneous HDBaseT™/HDMI outputs, RS-232 pass-through, and a web browser interface module for enhanced control and configuration.

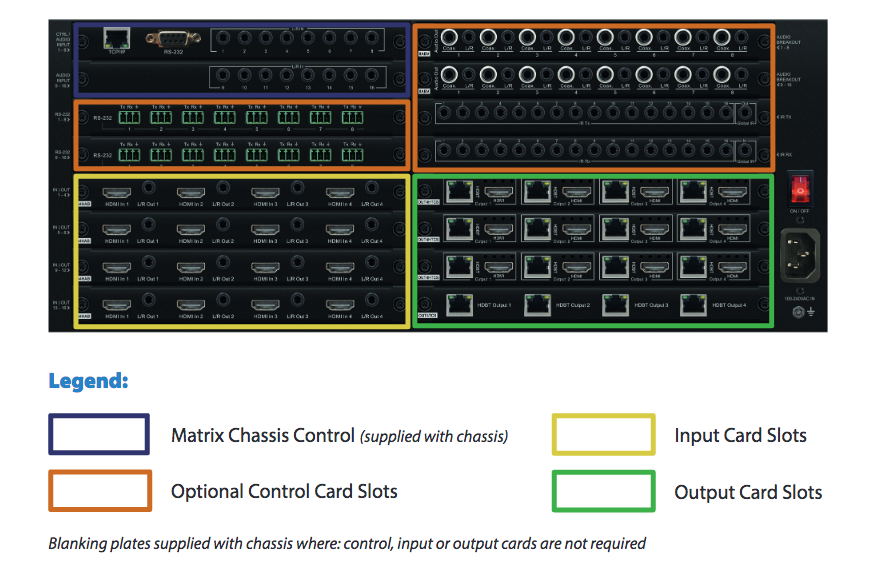

• Custom Pro Matrix with 12 modular bays for input/output/control board population
• Supports up to 16 video inputs and 16 video outputs using a combination of interchangeable 2-way and 4-way input and output boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Color Space Converter (CSC) boards support the 18 Gbps HDMI 2.0 specification, including HDR over HDBaseT™
• Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
- 1080p at 60Hz (for displays that do not support 4K)
- 4K 60Hz 4:2:0 (for displays that do not support full 18Gbps 4K 60Hz 4:4:4)
• 16 analog L/R audio inputs that can be integrated into the corresponding HDMI/HDBaseT™ zone outputs
• 16 IR outputs for routed control of local source equipment
• 16 IR inputs for IR distribution to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional IR control with Blustream HDBaseT™ receivers
• Optional analog and digital audio connection board with line-level volume control
• Web browser interface for Matrix control and configuration
• Matrix control via front panel, RS-232, TCP/IP, IR and web GUI
• Supports PoC (Power Over Cable) when used with compatible Blustream HDBaseT™ receivers
• Third-party controllers available for major controller brands
• Advanced EDID management
• Compatible with HDCP 2.2
• Audio Input Connectors: 16 x 3.5mm stereo jack (L/R)
• RS-232 serial ports: 1 x 9-pin RS-232 connector
• IR Input ports: 16 x 3.5mm stereo jack
• IR Output ports: 16 x 3.5mm mono jack
• TCP/IP Control: 1 x RJ45, female
• Rack-Mountable: 4U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 173mm x 422m without feet
• Dimensions Including Connections (W x H x D): 440mm x 178mm x 430mm with feet
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Power Supply: Internal 100-240v AC
