Optional 4-channel Dante card for CV amplifier
CDI-CV4 (PZA)
Optional 4-channel Dante card for CV amplifiers

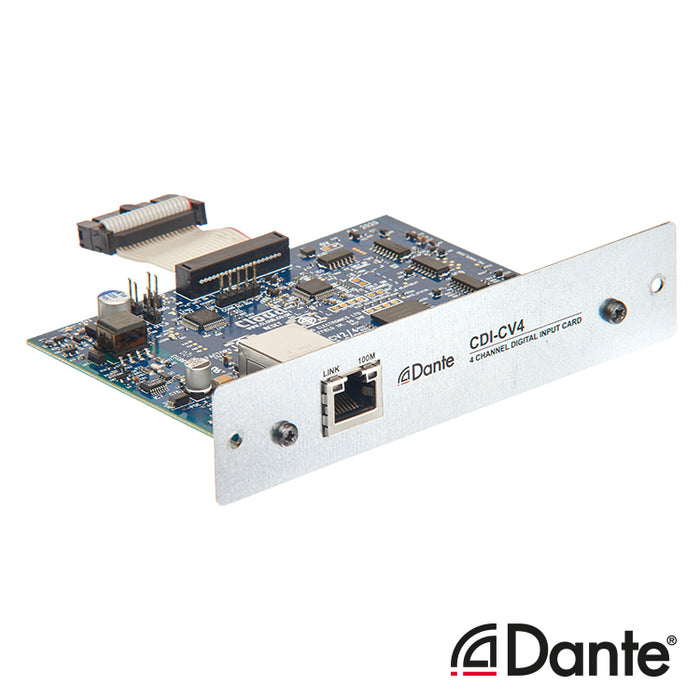

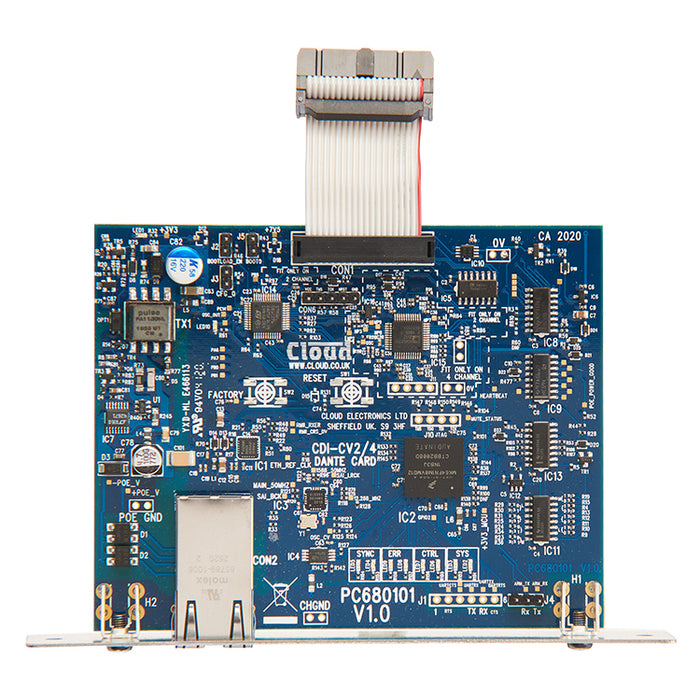

The CDI-CV4 Dante network card is a unique upgrade option for Cloud CV series digital power amplifiers and allows the amplifier to route its inputs directly from an Audinate Dante audio network.
This card provides up to four channels of low-latency digital audio over a Dante or AES67 network; channel assignment is handled using Audinate's Dante Controller software. The card also runs Dante v4.2 firmware, providing compatibility with any version of Dante Domain Manager (DDM).
CHARACTERISTICS
- Fits in rear panel expansion bay - adds four digital inputs to the amplifier
- Subset configured by the existing browser interface of the amplifier
- External power supply via PoE
- Compatible with Dante Controller and Dante Domain Manager
- LED indication of network speed and link activity
- Supports 16/24/32-bit PCM sample sizes
