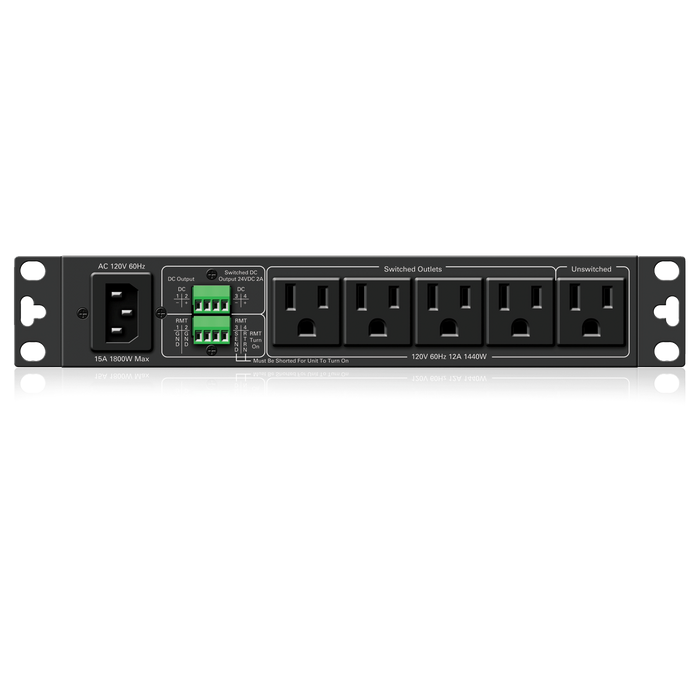

AP-S15RTHR POWER CONDITIONER (PZA)
Rackmount Power Conditioner with Remote Activation
The AP-S15RTHR is designed to fit into half-width Atlas equipment racks. The AP-S15RTHR meets or exceeds most installation requirements for AC power distribution and equipment power protection. The AP-S15RTHR features power management control, remote activation, 24 VDC 2000 mA output, noise filtering, spike/surge protection, and six AC outlets, making it the most compact and cost-effective power management protection system on the market today.
The AP-S15RTHR features noise filtering for unwanted radio frequency interference (RFI) commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are built in to reduce noise and electromagnetic interference (EMI) from items such as electric motors and external switching power supplies. The benefit of these filters can be seen in video products and can be audibly heard by reducing static crackles and external signal interference.
The AP-S15RTHR can be activated remotely via dry contact closure or via a 5V–24V DC voltage. Either method can be activated using one of the optional Atlas WPD wallplate switches that feature a custom label area and remote status LED. The AP-S15RTHR also features a 24V DC, 2000mA DC output that works in conjunction with the switched AC outlets. This 24V DC output provides enough current to power multiple preamplifiers, mixers, or Time Saving Device (TSD) amplifiers, reducing or eliminating the need for external DC power supplies.
For fire alarm requirements, an emergency power off (EPD) function can also be created using the remote activation feature by simply keeping the remote activation contact closed until a condition occurs requiring system shutdown. When the contacts are open, they will remove power from the switched outlets.
The AP-S15RTHR is unique in that it allows you to select the length of power cable required for your installation. A detachable 12’ IEC power cable with a retaining bracket is supplied with the unit. The AP-S15RTHR is designed to mount in a half-width rack, but can also be mounted in 19″ equipment racks using the optional PA702RMK kit. This kit allows you to mount an AP-S15RTHR alone or in conjunction with another Atlas half-width rack product such as the DPA-102PM, PA40G/PA60G, or MA40G/MA60G in a 1RU 19″ space.
CHARACTERISTICS
- 8.5" wide half-width rack design with removable rack ears
- Circuit breaker protection @ 15A
- 6 total outlets, 4 rear panel switched
- Detachable IEC power cable with retaining bracket
- Remote activation via latching dry contact closure or DC voltage or EPD (emergency power off) to integrate with fire control panels
- RFI and EMI noise filtering
- Ground fault connection indicator
- Power switch cover
- 24VDC 2000mA DC output
