Mixer amplifier

Cloud Electronics 24-120: 2 x 240 Watt dual-zone mono mixer amplifier suitable for low impedance or 100 volt line systems.

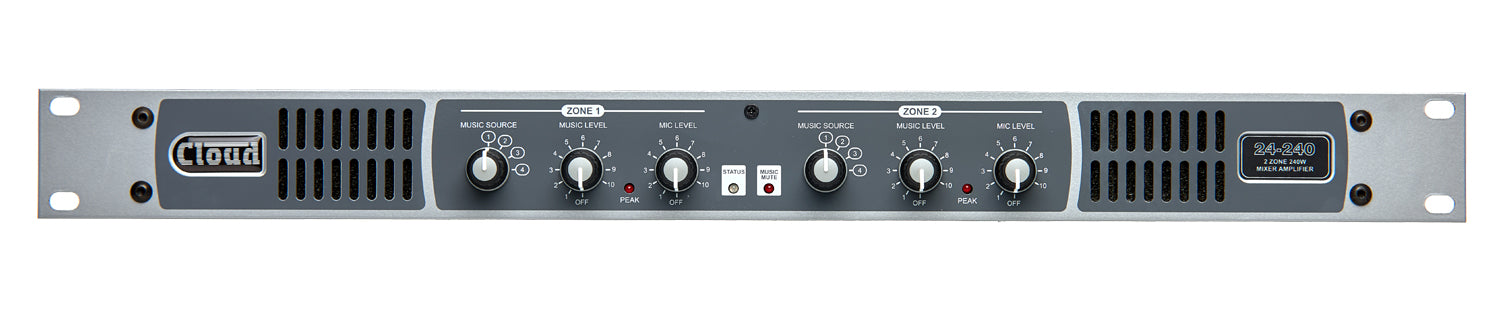

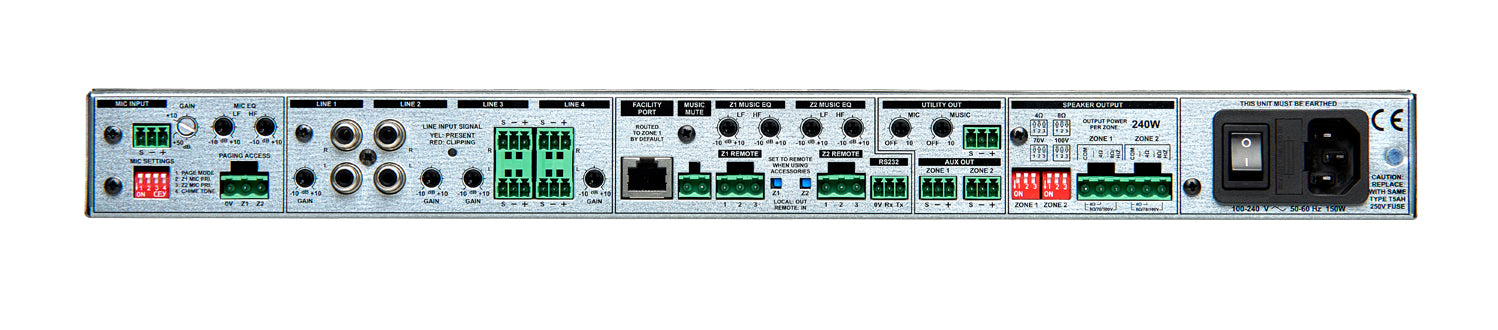

There are 4 music source inputs (2 balanced, 2 unbalanced), as well as a microphone input, each with its own rear-mounted gain control. The music source is selected by a front-mounted 4-position rotary dial, and both the music and microphone inputs have their own rotary level control.

There is a 2-band equalizer available on the rear for the microphone and each of the music zone outputs.

Compatible with optional remote control panels.

Slim 1U rackmount enclosure.

CHARACTERISTICS

• Two-zone mixer/amplifier
• 2 x 240W Class D transformerless amplifiers with limiters in each zone plus thermal/short circuit protection
• 4 line inputs, 2x unbalanced/ 2x balanced
• 1 microphone input with analog PA options
• Integrated doorbell activated by access control
• Dedicated 100 Hz high-pass filter on the microphone input
• Phantom power selectable via internal jumper
• Music level and source selection via RSL-4 and RSL-6
• Installation input (Zone 1 or both) for LM-2/BT -1F active modules
• RS232 control interface
• Line priority 4
• Microphone input priority over music
• Separate EQ for music and microphone signals
• 2 x auxiliary balanced line outputs
• 1 x utility/loop output with independent line and microphone controls with music content selection
• Remote control Music mute configurable for NA or NC operation
• Selectable speaker output impedance (4Ω/8Ω/70v/100v)
• High impedance shared power, 240W available
• Universal and efficient power supply
• Variable speed fan cooling
