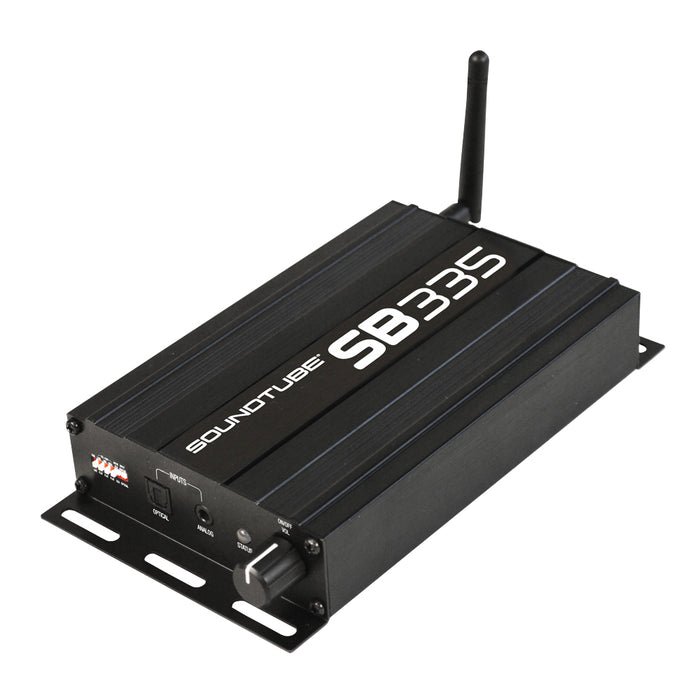

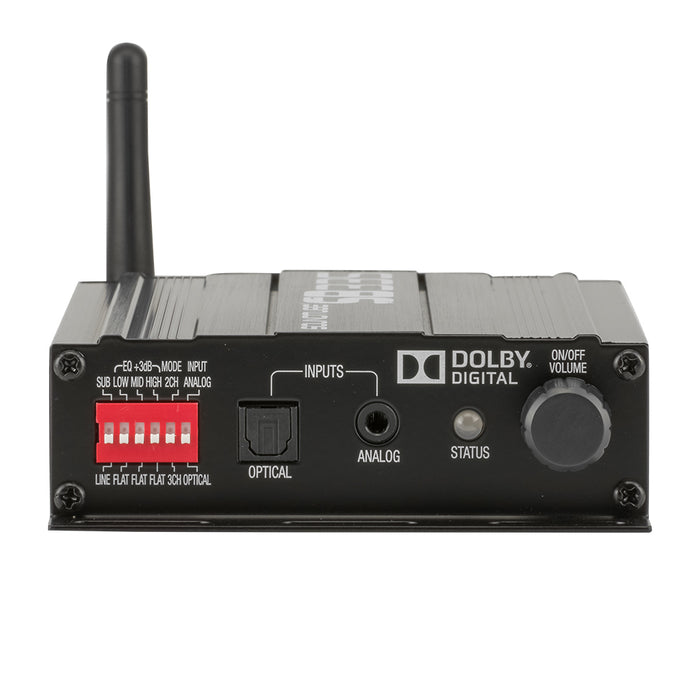

SB335
SoundTube Channel Class D Amplifier with Bluetooth Capabilities
The SB335 is a versatile, small, Class D amplifier designed for use in localized audio applications. Designed for use with SoundTube speakers, other hi-fi speakers, and passive sound bars, the SB335 provides 50 watts per channel into 8 ohms (2 channel operation) or 35 watts per channel into 8 ohms (3 channel operation). Digital and analog inputs are provided, allowing direct connection of most TVs or monitors. Bluetooth streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line-level subwoofer output. Dolby Digital decoding is also provided. The SB335 can be controlled via RS232 and will learn IR codes for volume control.
Power output 4 Ohms: 2 Channel 55W or 3 Channel 40W. Power output 8 Ohms: 2 Channel 50W or 3 Channel 35W.
| Color | Black |
|---|---|
| UPC | 748252171863 |
| Manufacturer | SoundTube |
| Manufacturer Category | Amplifier |
| Depitude | 7.25 in 184.15 mm |
| Height | 1.25 in / 31.75 mm |
| Width/Diameter | 3.9 in / 99.06 mm |
| Shipping weight | 3.35 lbs / 1.52 kg |
| Carton Height | 3 in 76.2 mm |
| Carton Length | 9.5 in / 241.3 mm |
| Carton Width | 9 in 23.6 mm |
| Certifications | CCC, CE, RoHS, UL60065, ETL-C/US, FCC |
| Included accessories | 3-Pin Euroblock, 6-Pin Euroblock, Antenna, IR Receiver, Mounting Hardware, Power Supply |
| Optional accessories | Replacement Power Supply (AC-PS3240).European Motor Auth (AC-PS3240-UE) |
| TAA Compliant (Trade America) | No no |
| BAA Compliant (Made in USA) | No no |
| Input impedance | 10K . Unbalanced |
| Product type | Euroblock |
| Voltage calibration | 34 dB |
