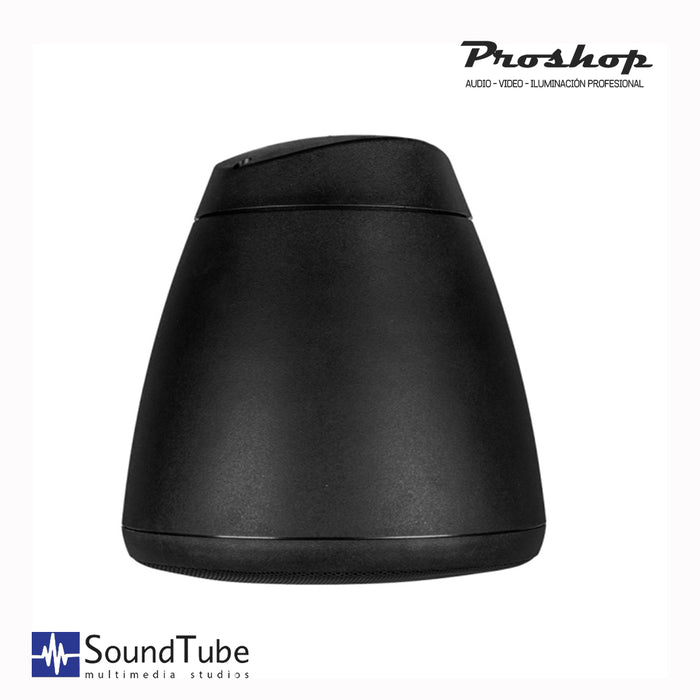

HP82-EZ-BK
An 8.0-inch (203 mm) high-power coaxial driver with BroadBeam Ring™ compression driver technology for long throw and uniform directivity. Includes hanging hardware with galvanized steel cables and a hanging bracket for quick, easy, and secure installation. The unit can be suspended or mounted directly in conduit via the locking cover plate. Enclosure constructed of injection-molded ABS with fiberglass reinforcement for durability in indoor or outdoor applications. 16 Ohm impedance for easy daisy-chaining in low-voltage systems. Aluminum grille with protective finish. Built-in thermal fuse. The ceramic input terminal accepts 10-gauge plenum-rated signal wire and includes a thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. The unit is shipped in environmentally friendly, recyclable packaging. Listed to UL 1480 UEAY, UL 2239, and EN54-24. Accessories include hanging hardware, waterproof terminal cap, cover plate, and AC-RSEZ-HH-10.
| Color | Black |
|---|---|
| UPC | 752830442580 |
| Manufacturer | SoundTube |
| Manufacturer Category | HPi High Ceiling Pendant |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping weight | 16.5 lbs / 7.5 kg |
| Carton Height | 16 in / 406 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, EN54, RoHS, UL1480A, UL2239 |
| Enclose Properties | Ported, reinforced ABS |
| Included accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional accessories | Black Grille (GRL-RS82-EZ-BK) .10' Hanging Cable (AC-RSEZ-HH-10)-20' Hanging Cable (AC-RSEZ-HH-20)-Black Weatherboot (WEATHERBOOT-L-BK)-Beam Clamp (AC-BC1)-Forged Eging Eck (AC-FE1)-Black Split Looming (AC-SLT-10-BK)-Snap Link (AC-SL1) |
| Source of entries | 4 Pin Ceramic Terminal |
| TAA Compliant (Trade America) | No no |
| BAA Compliant (Made in USA) | No no |
| Coverage angle (6dB, 2kHz) | 135th. |
| Crossover frequency | 2.5 kHz |
| Directivity Factor (Q) (Atropexance 100Hz - 10kHz, 2kHz) | 3.6 |
| Directivity Index dB (Averaged 100Hz - 10kHz, 2kHz) | 5.6dB |
| Frequency response (at 10 dB) | 80 Hz - 22 kHz |
| Frequency response (- 3 dB) | 110 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low frequency voice coil | 1.5 in 38 mm |
| Underpass Crossing | 6 dB per octave 1st order |
| - Max. RMS lumens of continuous power | 64W |
| - Max. Program Power | 128 W |
| Minimum impedance | 12 . |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal impedance | 16 |
| Tweeter Driver | 1.38" Titanium Compression Driver w/ Waveguide |
| Woofer Driver | 8" Paper Cone w/ Ropath Surround |
| Sensitivity dB 1W/1M | 92 dB |
| Sensitivity dB 2.83V/1M | 89 dB |
| Tape selector | Rotation change |
| Transformative options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer crushes to Max. Position (25V/70.7V/100V) | 8W/64W/64W |
