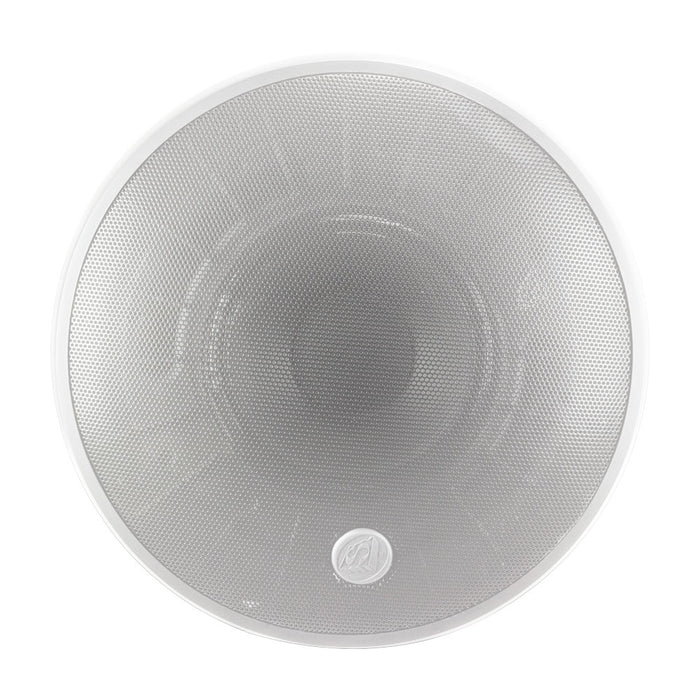

HP590I-WH
Patented BroadBeam Ring ™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. A 5.25-inch polypropylene woofer and a 1.0-inch convex titanium tweeter with a 90° waveguide are mounted on a proprietary cast aluminum disconnect and heat sink. Weather-tested components for indoor and outdoor applications. Average sensitivity of 87.5 dB delivers high output capabilities and reduced amplification costs. Patented ZeroReflectction ™ archiving technology for optimal sound reproduction and cabinet rigidity. Easily accessible, six-position, selectable whip switch for 25, 70, and 100-volt applications with transformer tap position. Includes pendant hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy, and secure installation. Also includes Euroblock connector and terminal weather boot. UL 2239 (pendant cable) approved.
| Color | White |
|---|---|
| UPC | 752830442382 |
| Manufacturer | SoundTube |
| Manufacturer Category | HPi High Ceiling Pendant |
| Height | 11.74 in 298.2 mm |
| Width/Diameter | 9.68 in / 245.9 mm |
| Shipping weight | 22.95 lbs / 10.41 kg |
| Carton Height | 13.5 in / 342.9 mm |
| Carton Length | 22.25 in / 565.15 mm |
| Carton Width | 12.25 in 311.15 mm |
| Certifications | CE, RoHS, UL2239 |
| Enclose Properties | ABS Glass Fiber reinforced, injection molded, cover |
| Closing volume | 339.7 cu in / 5566.69 cu cm |
| Included accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional accessories | White Grille (GRL-RS500-WH)-White Mount Bracket (AC-RS-SM5-WH)-Beam Clamp (AC-BC-1)-Forged Eyebolt (AC-FE1)-White Split Loom Tubing (AC-SLT-10-WH)-10' Hanger Cable (AC-RS-H-10)-20' Hanger Cable (AC-RS-RSHH-20)-50'Cable pendant (AC-RS-H-50)-White Weatherboot (WEHERBOOT-LWH)-Snap Link (AC-SL-1) Cable (EUROBLOCK)50'Cable pendant (AC-RS-HC)50'Cold Vequilla (AC-HUB)White Weaboot (WEHERBO-L-WH)-Snap Link (AC-SL-1). |
| Source of entries | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No no |
| BAA Compliant (Made in USA) | No no |
| Coverage angle (6dB, 2kHz) | 55th. |
| Crossover frequency | 3.0 kHz |
| Directivity Factor (Q) (Atropexance 100Hz - 10kHz, 2kHz) | 5.5 and 9.1 |
| Directivity Index dB (Averaged 100Hz - 10kHz, 2kHz) | 5.7dB and 9.6dB |
| Frequency response (at 10 dB) | 69 Hz - 22 kHz |
| Frequency response (- 3 dB) | 95 Hz - 22 kHz |
| Grille Properties | Powder coated, steel |
| Low frequency voice coil | 1 in / 25.4 mm |
| - Max. RMS lumens of continuous power | 80W |
| - Max. Program Power | 160 W |
| Minimum impedance | 4.2 |
| Network Type: High Pass | 12 dB per eighth order |
| Nominal impedance | 8 . |
| Tweeter Driver | 1" Convex Titanium Tweeter w/ Tractrix Profile Horn |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB 1W/1M | 87.5 dB |
| Sensitivity dB 2.83V/1M | 87.5 dB |
| Tape selector | Rotation change |
| Transformative options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer crushes to Max. Position (25V/70.7V/100V) | 5W/33W/33W |
