CM800i-WH

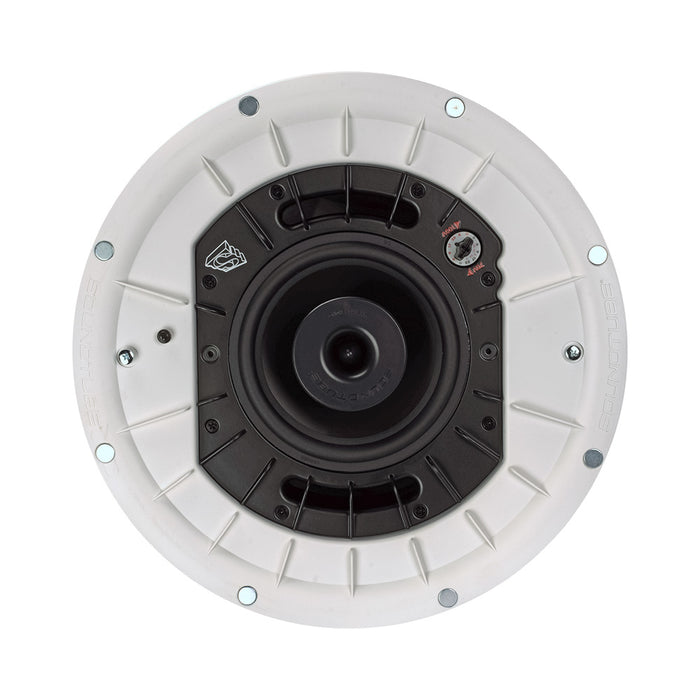

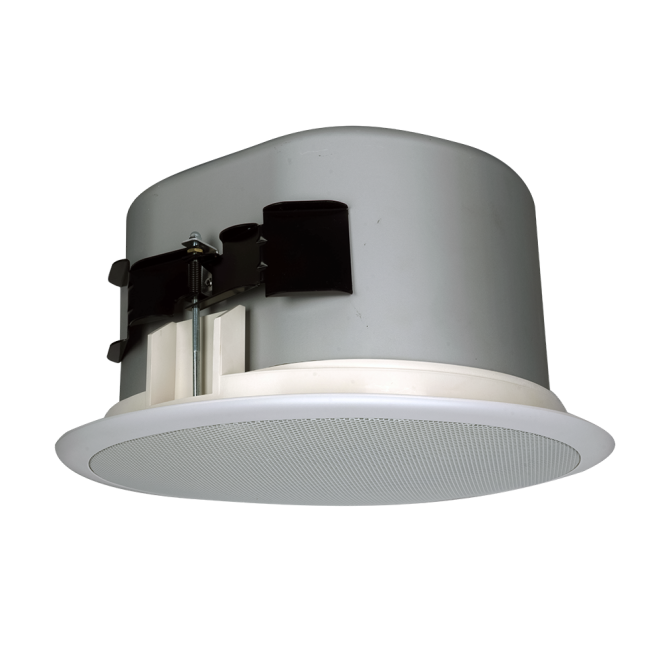

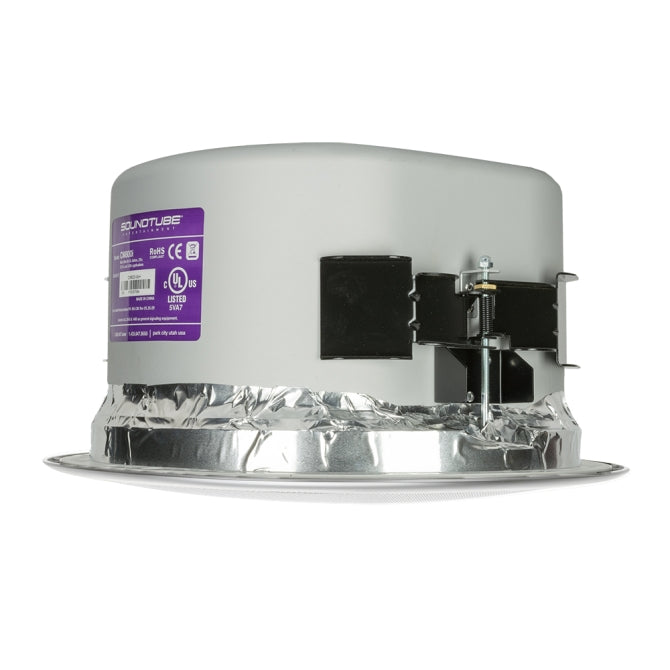

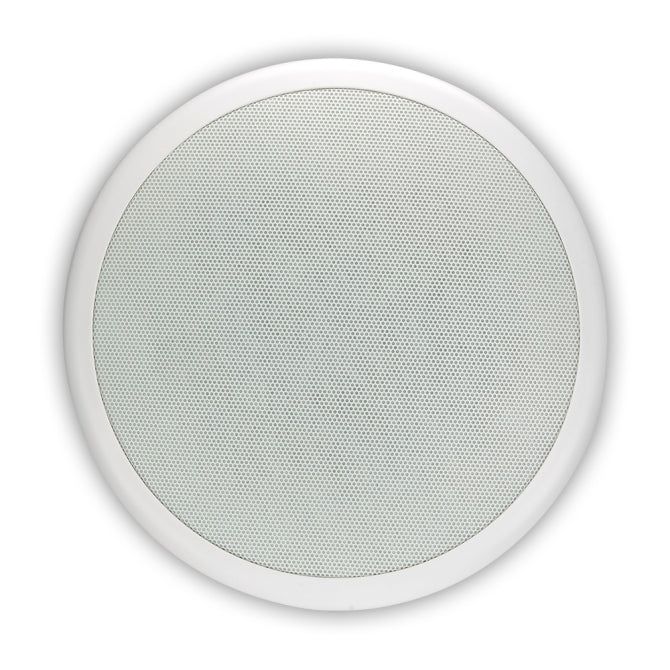

Patented BroadBeam Ring ^™ waveguide technology delivers a consistent dispersion pattern for maximum coverage area per speaker. An 8.0-inch polypropylene woofer and a 1.0-inch convex titanium tweeter with FerroFluid cooling are mounted on a cast aluminum disconnect and heat sink. Quick-install, blind-mount, fixed-wing design with constant-tension design and ceiling thicknesses ranging from 0.25 in (3.4 mm) to 1.91 in (48.5 mm). Easily accessible, six-position selectable whip switch for 25, 70, and 100-volt applications with transformer tap position. Tool-free separating magnetic grille and bezel assembly with integrated safety cable for easy installation and field painting. Steel grille with protective powder-coated finish for long-lasting durability. An average sensitivity of 90 dB delivers high-performance capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
