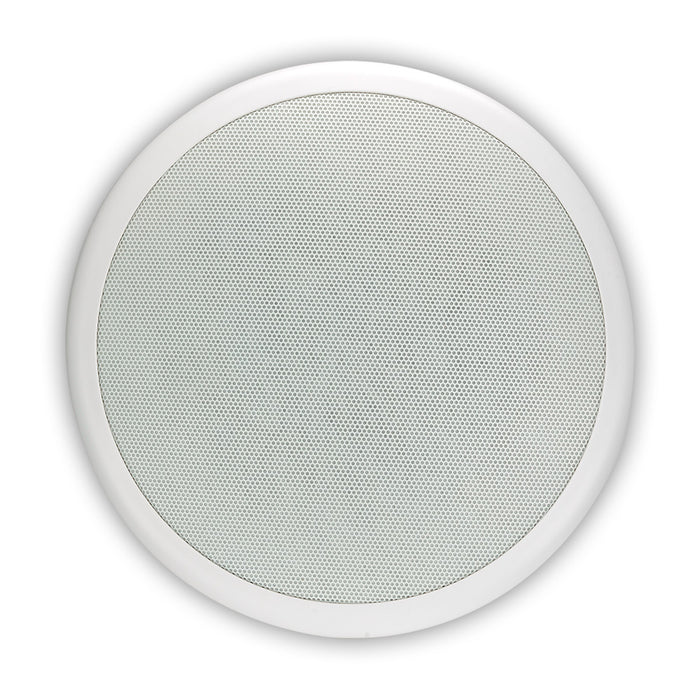

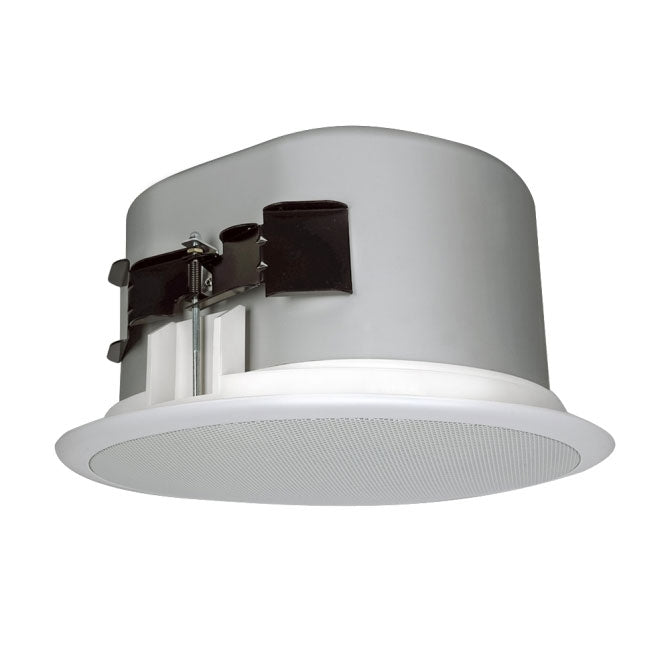

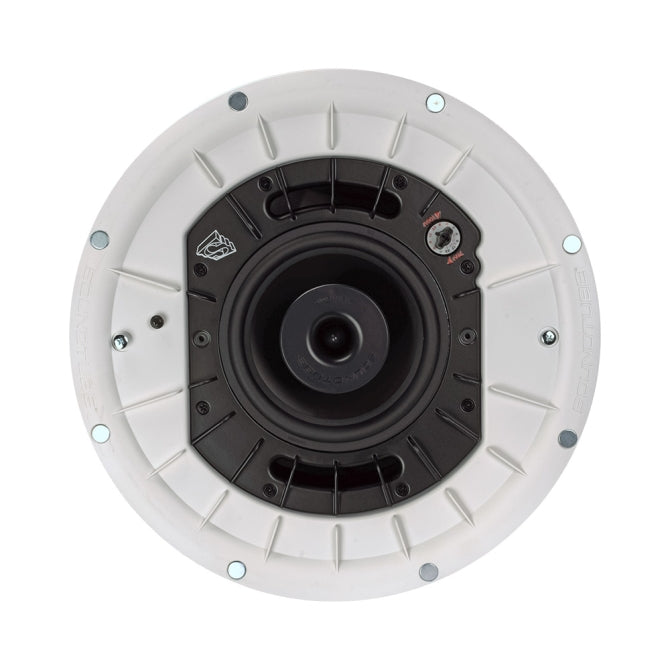

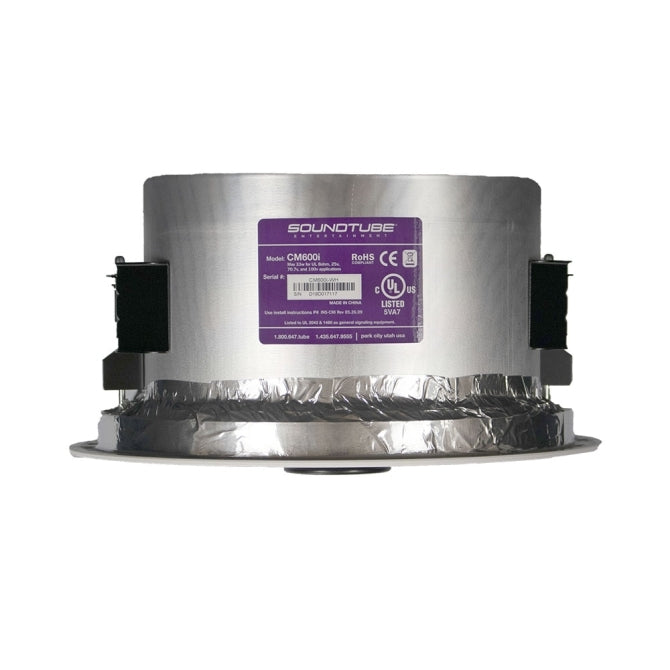

CM600I-WH
Patented BroadBeam ™ wave-steering technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. A 6.5-inch polypropylene woofer and 1.0-inch convex aluminum tweeter with FerroFluid cooling are mounted on a cast aluminum slate and heat sink. Quick-install, blind-mount, fixed-wing mounting mechanism with constant-strength design accommodates ceiling thicknesses ranging from 0.25 in (3.4 mm) to 1.69 in (42.9 mm). Easily accessible, six-position selectable latching switch for 25, 70, and 100-volt applications with a transformer tap position. Tool-free magnetic grille and bezel assembly separate with integrated safety cable for easy installation and field painting. Steel grille with protective powder-coated finish for long-lasting durability. Average sensitivity of 88 dB delivers high-rating capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
| Color | White |
|---|---|
| UPC | 752830440685 |
| Manufacturer | SoundTube |
| Manufacturer Category | CMi in trade |
| Shipping weight | 35 lbs / 15.88 kg |
| Carton Height | 19 in / 482.6 mm |
| Carton Length | 32 in / 812.8 mm |
| Carton Width | 14 in / 355.6 mm |
| Certifications | CE, RoHS, UL1480A, UL2043 |
| Enclose Properties | ABS, aluminum, Ported |
| Included accessories | Conduit Plate, Euroblock, Grille, Masking Paint, Tile Bridge |
| Optional accessories | Black Metal Grille (GRL-CM6/8-BK)-Black Weather-Guard Grille (GRL-CM6/8-WG-BK)-Black Flangeless Grill (GRL-CM6/8-FLG-BK)-Tile Bridge (AC-CM8-TB)-Pre-Construction Bracket (AC-CM8-PCB)-Junction Box (AC-CM-JBOX) |
| Source of entries | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No no |
| BAA Compliant (Made in USA) | No no |
| Backcan Diameter | 11.68 in 296.7 mm |
| Backcan Height | 7.94 in / 201.7 mm |
| Coverage angle (6dB, 2kHz) | 135th. |
| Crossover frequency | 3.0 kHz |
| Cutout Width/Diameter | 12.75 in / 33.9 mm |
| Directivity Factor (Q) (Atropexance 100Hz - 10kHz, 2kHz) | 4 and 5.4 |
| Directivity Index dB (Averaged 100Hz - 10kHz, 2kHz) | 5.6 dB and 7.3 dB |
| Frequency response (at 10 dB) | 52 Hz - 22 kHz |
| Frequency response (- 3 dB) | 69 Hz - 22 kHz |
| Grille Properties | Standard-Flange, Magnetic, Powder-Coated, White, Paintable, Steel |
| Low frequency voice coil | 1 in / 25.4 mm |
| Underpass Crossing | 12 dB per eighth order |
| - Max. Roof thickness | 1.91 in / 48.5 mm |
| - Max. RMS lumens of continuous power | 90W |
| - Max. Program Power | 180 W |
| Minimum impedance | 5.3 |
| Minimum roof thickness | 0.25 in / 6.4 mm |
| Network Type: High Pass | 12 dB per eighth order |
| Nominal impedance | 8 . |
| Tweeter Driver | 1" BroadBeam. |
| Woofer Driver | Polypropylene 6.5" |
| Sensitivity dB 1W/1M | 88 dB |
| Sensitivity dB 2.83V/1M | 88 dB |
| Tape selector | Rotation change |
| Transformative options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer crushes to Max. Position (25V/70.7V/100V) | 5W/33W/33W |
| Visible diameter | 14.76 in / 374.9 mm |
| Visible height | 1.08 in / 27.4 mm |
