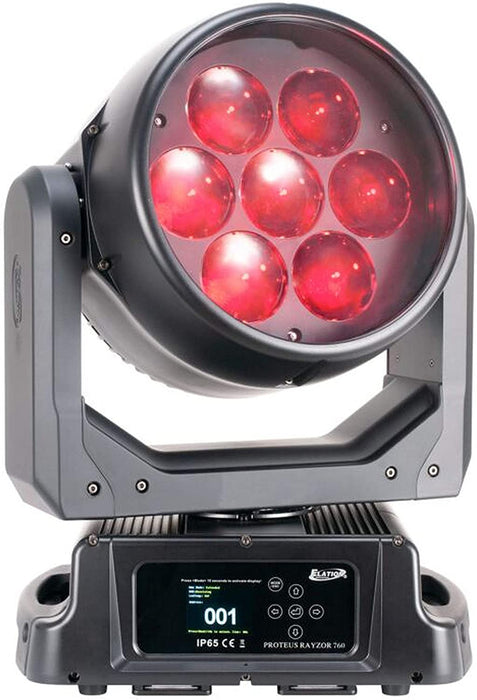

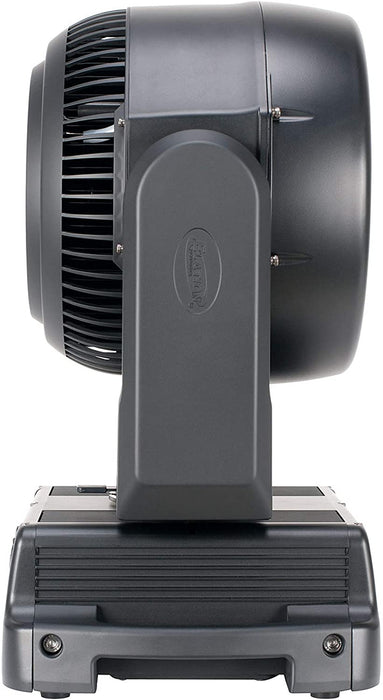

Proteus Rayzor 760

Proteus Rayzor 760 (PZA)

IP65 7x60W RGBW LED Wash luminaire with SparkLED effect, continuous zoom, pan and tilt

The Proteus Rayzor 760™ is a compact yet extremely powerful IP65-rated wash effects fixture featuring Elation’s exclusive SparkLED™ system and fast, continuous pan/tilt motion. With its wide 5-77 degree zoom range, it delivers intense, well-defined overhead beams at over 7200 lumens, as well as exceptionally wide and even wash coverage, making it a perfect tool for any application, even in harsh outdoor conditions. SparkLEDs deliver a standout and innovative LED pixel effect with dedicated high-brightness pixels within the large front lenses for additional layers of creativity.

Powered by 7 independently controlled 60W RGBW LEDs, delivering over 7200 lumens of output with a total power of 420W, the Proteus Rayzor 760 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface area on the fixture that is enhanced by the exclusive, patent-pending SparkLEDs technology. SparkLEDs consist of 28 individual white LEDs, strategically placed within the lens to create a unique additional layer, allowing designers access to an innovative new way to create interest on stage. The Proteus Rayzor 760 offers this never-before-seen style of internal lens lighting for depth and visual impact. The SparkLEDs can be controlled by the lighting console or controlled by a multitude of internal FX patterns.

In addition to its powerful wash and enhanced effects, the Proteus Rayzor 760 offers continuous, precise pan and tilt rotation, allowing for variable speeds from slow to extremely fast motion effects. Combining the powerful LED output with the SparkLEDs while utilizing 360° movement allows the designer to create endless, unique, and compelling designs, from mid-air beams or sweeping stage washes to subtle mood effects or TV camera lens effects.

Characteristics
