IP-SDMF

IP-SDMF

by ATLAS SOUND
Sold out
$ 45,913.26
MEASURES
COLOR: N/A

Horn speaker. (PZA)

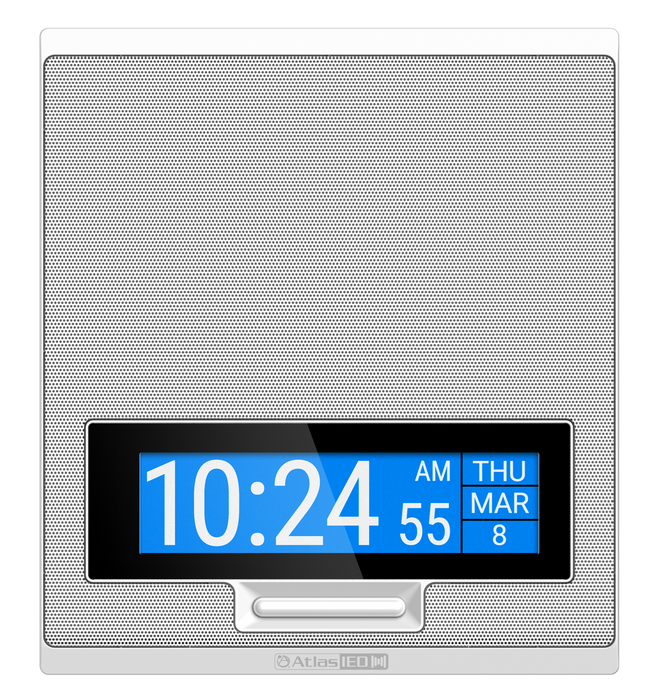

Indoor wall-mounted PoE+ IP speaker with LCD display, LED flashing lights, and talkback microphone

The AtlasIED IPX Series IP-SDMF Indoor Wall-Mount IP Speakerphone with Display and Flashing leverages VoIP communication solution to extend telepresence with enhanced audio for those environments where network-wide communication is desired and requiring large speakers with high performance to overcome high ambient noise areas or large spaces.

AtlasIED IP-SDMF registers as a communication endpoint directly within the InformaCast and Revolution Advanced Notification applications, supporting visual text and audio streaming to enhance physical security while simultaneously improving daily communications through advanced alerts, bell schedules, pre-recorded and scheduled announcements, while leveraging the WAN/LAN network architecture.

When used within a Cisco environment, these same AtlasIED IP speakers can join Cisco Survivable Remote Site Telephony (SRST) as a supported device within the SRST endpoint architecture. Cisco SRST provides call processing redundancy at remote locations when access to the centralized Cisco Unified Communications Manager is interrupted due to a WAN outage. The ability for LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

The IP-SDMF IP speakers with display and flashing provide equal “effective communication”.

"Under Title II of the ADA, all state and local governments must take steps to ensure that their communications with people with disabilities are as effective as their communications with others."

What does it mean for communication to be “effective”? Simply put, “effective communication” means that Everything written or spoken must be as clear and understandable to people with disabilities as it is to people without disabilities. .

When third-party notification applications are not required, IP-SDMF speakers can be registered as SIP devices directly to a SIP server or VoIP communications manager for critical alerting/public address applications.

Ideal for corporate applications, educational institutions, entertainment complexes, industrial facilities, government buildings, healthcare facilities, places of worship, transportation hubs—anywhere where critical public alerting/footage needs exist and you prefer to use a single, enterprise-class communications platform.

Characteristics

The IP-SDMF indoor speakers are equipped with an 8" (205 mm) coaxial speaker optimized for voice intelligibility.

The IP-SDMF speaker grilles are made of 18 gauge metal for safety and durability in commercial applications. The deflector is finished with a neutral white electrostatic powder coat and comes with all necessary mounting screws.

While in standby, the IP-SDMF displays the time and eliminates the need for a separate master clock system by using the National Time Synchronization Protocol (NTP) to stay up-to-date. When active, the IP-SDMF display occasionally switches to visual notifications by scrolling text content over the high-resolution LCD digital readout.

LED flashers located below the screen can be used to alert room occupants of an incoming audio message, as well as to scroll a text message in accordance with ADA compliance.

All Atlas IP loudspeakers consist of a factory-assembled speaker, grille, and control/amplifier PCB that are securely mounted to the rear of the grille.

The IP-SDMF features automatic registration. This is an easy and time-saving way to configure our IP speakers on your voice VLAN, similar to a VoIP phone. By being connected to the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed.

CHARACTERISTICS

  • Network functions

  • Dynamic or static IP address
  • Ethernet IEEE802.3 10/100Base-T
  • IEEE 802.1q Labeling
  • Complies with IEEE 802.3aT

  • VoIP standard audio: G.711 u-law/a-law (64 kbit/s) or G.722 wideband audio (64 kbit/s)

  • Automatic registration: SLP for Singlewire applications, DHCP Option 72 for Syn-Apps applications, or IEDNet+ for AtlasIED applications

  • Static Registration: HTTP GUI for Static Configuration

  • Audio functions

  • Integrated Amplifier Total Power 15 Watts: Main Speaker Output 8 Ohms
  • Balanced auxiliary audio line input (2.8 Vpp 10 K)
  • Balanced auxiliary audio line output (2.8 Vpp 10 K)
  • Additional features
  • 2 general-use entrances

  • PoE+ enabled

  • 1 general purpose output (2 A at 30 V DC)
  • Telephone/loud night ringing
  • External power supply option
