IP-DDS

IP-DDS

by ATLAS SOUND
Sold out
$ 56,750.91
MEASURES
COLOR: N/A

Double-sided LCD terminal. (PZA)

PoE+ compatible dual-sided IP LCD terminal with speakers and flashing LED light

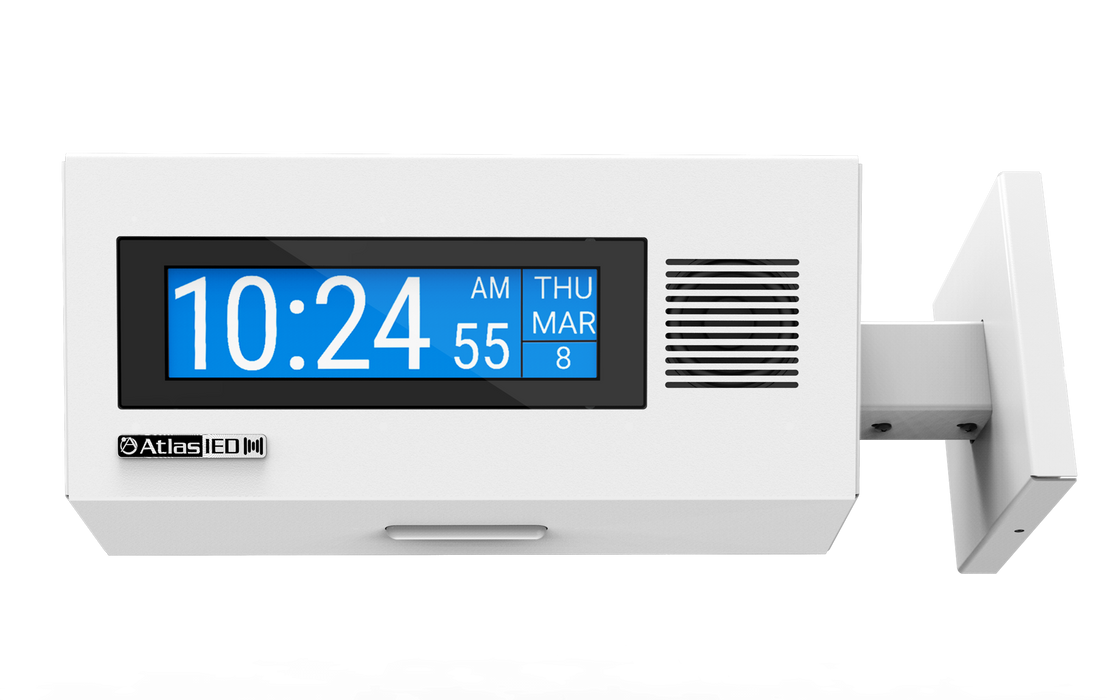

The IP-DDS AtlasIED IPX Series is a double-sided indoor display incorporating speakers and an LCD screen. It can display the time and scrolling text, and leverages VoIP communications to enhance notifications with effective visual text alerts for areas with high ambient noise or large spaces.

AtlasIED IP-DDS registers as a communication endpoint directly within InformaCast, SA-Announce, and GCK advanced notification applications, and supports visual and audio text streaming to enhance physical security while improving daily communications through advanced alerts, bell schedules, pre-recorded and scheduled announcements, and intercom, while leveraging WAN/LAN network architecture.

When used within a Cisco environment, these same AtlasIED dual-sided IP LED displays with speakers can join Cisco Resilient Remote Site Telephony (SRST) as a supported device within the SRST endpoint architecture. Cisco SRST provides call processing redundancy at remote locations when access to the centralized Cisco Unified Communications Manager is interrupted due to a WAN outage. The ability for LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

The IP-DDS can provide audio through its built-in speakers or support distributed analog PA systems with the convenience of line-level audio outputs. This line-level output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to power large zones of traditional AtlasIED 25V, 70.7V, or 100V loudspeakers or pager horn speakers.

It also includes 2 GPI inputs, 1 GPI output and a microphone input for talkback or listening applications. GPI/O ports provide triggering for critical alert notification or unified connectivity of third-party systems.

Under Title II of the ADA, all state and local governments must take steps to ensure effective communication with people with disabilities. The AtlasIED IP-DDS is a double-sided indoor display incorporating speakers and a flasher that provides effective communication for all audiences.

CHARACTERISTICS

  • Network functions

  • High visibility network controlled LCD display

  • Dynamic or static IP address
  • Auto-registration and auto-provisioning
  • Ethernet IEEE802.3 10/100Base-T
  • Multicast-enabled network clock control
  • Compatible with Cisco SRST
  • Complies with IEEE 802.3aT
  • Powered by an IEEE802.3af compliant PoE+ switch or a local 12V DC-18V DC power supply
  • RJ-45 female input on PCB

  • Automatic registration: SLP for Singlewire applications, DHCP Option 72 for Syn-Apps applications, or IEDNet+ for AtlasIED applications

  • Static Registration: HTTP GUI for Static Configuration

  • PoE+ enabled

  • External power supply option
