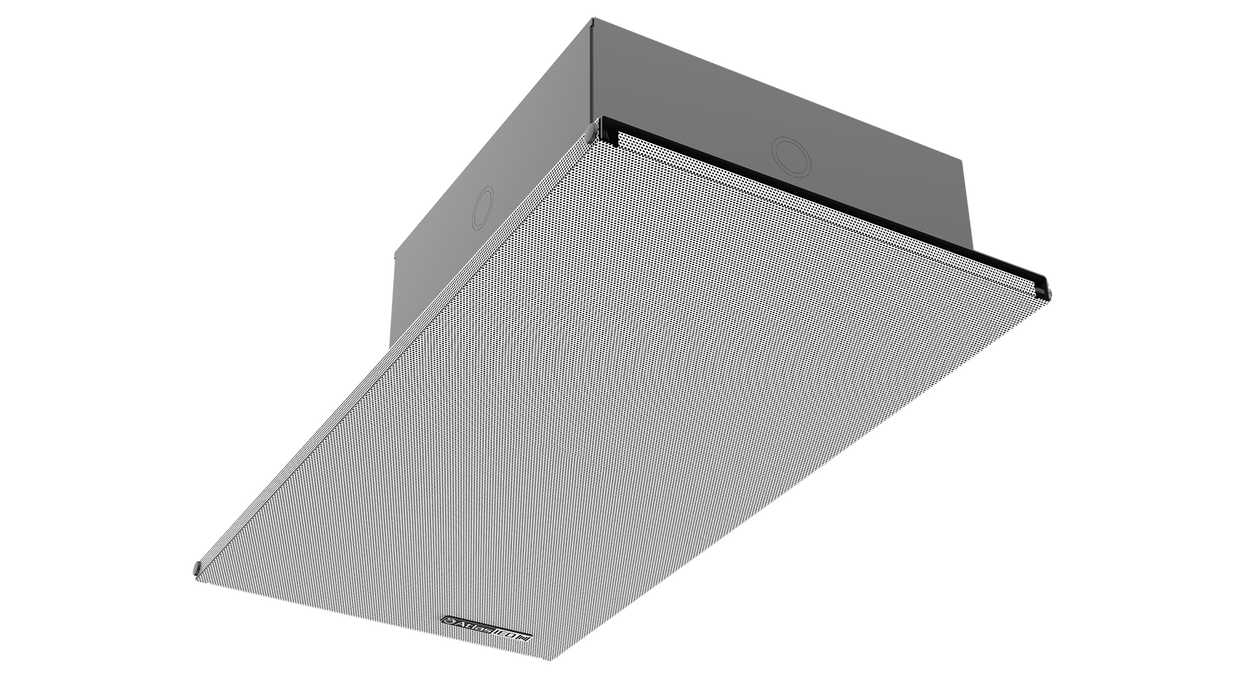

1' x 2' Indoor PoE+ Ceiling Mount IP Speaker with Talkback Microphone
The AtlasIED IP-12SYSM 1' x 2' suspended ceiling mount IP speakers with talkback leverage the VoIP communication solution to extend telepresence with enhanced audio for those environments where network-wide communication is desired and requiring large speakers with high performance to overcome high ambient noise areas or large spaces.
The AtlasIED IP-12SYSM registers as a communication endpoint directly within the InformaCast and Revolution Advanced Notification applications, supporting audio streaming to enhance physical security while also improving daily communications through advanced alerts, bell schedules, pre-recorded and scheduled announcements, and intercom, while leveraging WAN/LAN network architecture.
When used within a Cisco environment, these same AtlasIED IP speakers can join Cisco Survivable Remote Site Telephony (SRST) as a supported device within the SRST endpoint architecture. Cisco SRST provides call processing redundancy at remote locations when access to the centralized Cisco Unified Communications Manager is interrupted due to a WAN outage. The ability for LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).
When third-party notification applications are not required, the IP-12SYSM speakers can be registered as SIP devices directly to a SIP server or VoIP communications manager for critical alerting/public address applications and two-way communication.
Ideal for corporate applications, educational institutions, entertainment complexes, industrial facilities, government buildings, healthcare facilities, places of worship, transportation hubs—anywhere where critical public alerting/footage needs exist and you prefer to use a single, enterprise-class communications platform.
Characteristics
The IP-12SYSM indoor speakers are equipped with an 8" (205 mm) coaxial speaker optimized for voice intelligibility.

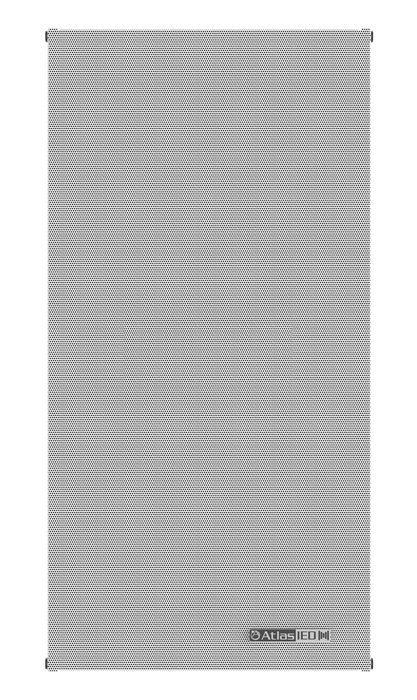

The IP-12SYSM speaker grills are made of 18-gauge metal for safety and durability in commercial applications. A 22 gauge perforated metal screen is provided over the speaker to maximize performance by allowing the optimum percentage of open area in front of the speaker. The deflector is finished with a neutral white electrostatic powder coat.
The IP-12SYSM includes a subminiature omnidirectional electret condenser microphone that mounts behind the steel grille perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or telephone.
All Atlas IP loudspeakers consist of a factory-assembled speaker, grille, and control/amplifier PCB that are securely mounted to the rear of the grille.
The IP-12SYSM features include automatic provisioning and registration. This is an easy and time-saving way to configure our IP speakers on your voice VLAN, similar to a VoIP phone. By being connected to the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed.
-
Network functions
-
Dynamic or static IP address
-
Ethernet IEEE802.3 10/100Base-T
-
IEEE 802.1q Labeling
-
Complies with IEEE 802.11AT
-
VoIP standard audio: G.711 u-law/a-law (64 kbit/s) or G.722 wideband audio (64 kbit/s)
-
Automatic registration: SLP for Singlewire applications, DHCP Option 72 for Syn-Apps applications, or IEDNet+ for AtlasIED applications
-
Static Registration: HTTP GUI for Static Configuration
-
Audio functions
-
Integrated Amplifier Total Power 15 Watts: Main Speaker Output 8 Ohms
-
Balanced auxiliary audio line input (2.8 Vpp 10 K)
-
Balanced auxiliary audio line output (2.8 Vpp 10 K)
-
Additional features
-
2 general-use entrances
-
1 general purpose output (2 A at 30 V DC)
-
Telephone/loud night ringing
-
External power supply option
