Ceiling speaker (PZA)

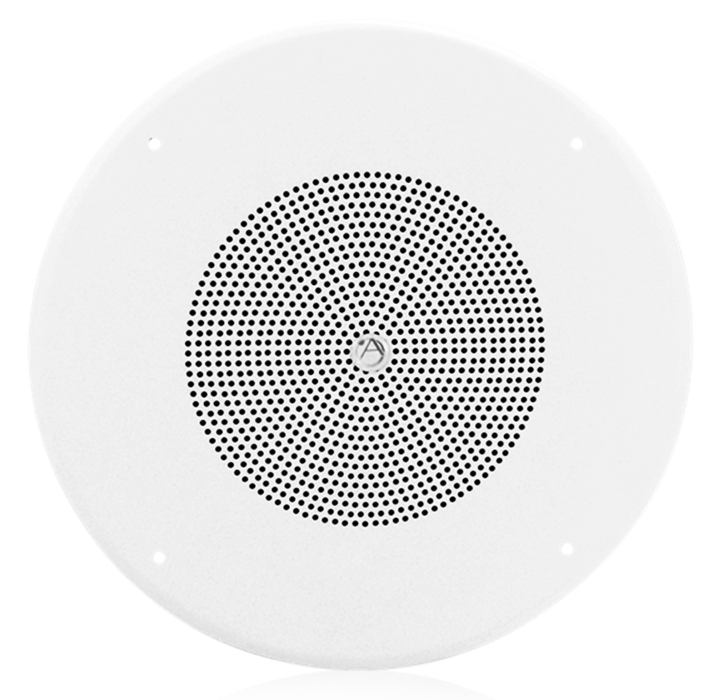

8" Ceiling Speaker with 5 Watt, 25V Transformer and 62-8 Baffle
HD25W is a cost-effective 8" dual-cone speaker assembly that offers a wide frequency response for general-purpose voice and music reproduction. The unit is shipped
Complete with factory-wired 25V grid and transformer to reduce field installation time and expense. The HD25W model includes the industry-favorite Model 62-8 grid. The model will accept optional protective enclosures and mounting accessories to meet installation and code requirements.
CHARACTERISTICS
-
10 ounces. The magnet offers a lower frequency response
-
The 25 volt transformer offers 0.5, 1, 2 and 5 watt taps
-
The baffle is the industry standard 62-8 with a baked white epoxy enamel finish.
-
Dual cone type driver
-
Factory-assembled speaker packages reduce installation time and expense
-
Mounts to standard tile bridges, cabinets, and plaster rings
-
Sensitivity 97dB 1W/1m
-
Speaker package includes driver, transformer, baffle and hardware bag.
-
UL1480 and UL2043 Listed
