Coaxial speaker (PZA)

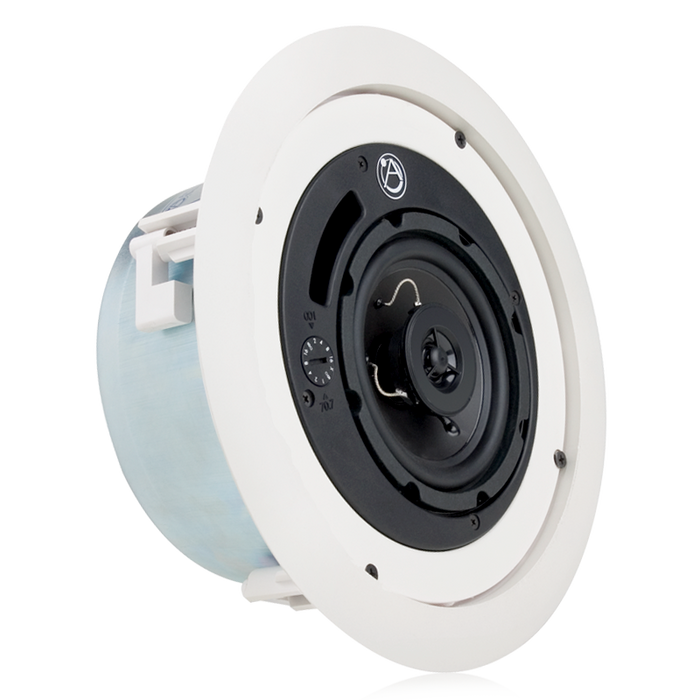

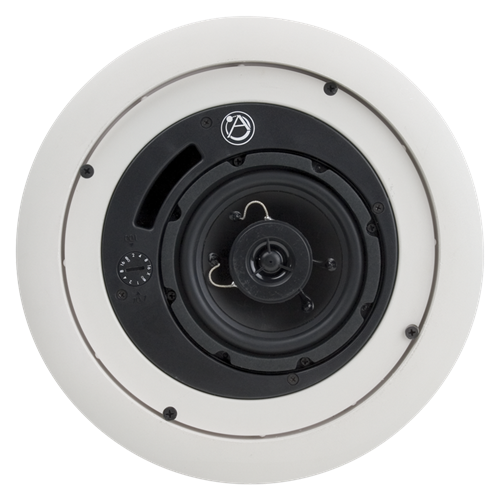

4" Surface Mount Coaxial Ceiling Speaker with 16 Watt 70/100V Transformer and UL2043 Certification
The AtlasIED FAP42TC-UL2043 meets the requirements of UL 2043 for loudspeakers used in air-handling (true plenum) spaces. With an overall depth of 4" (102 mm), the FAP42TC-UL2043 is the perfect choice when high-fidelity audio and wide, even coverage are required, but space above the plenum is limited. For wall-mount applications (tanning salons or surround sound), the short 4" depth will work even in most stud wall installations.
A simplified input section features a 4-pole Phoenix-style connector for easy daisy-chaining between speakers. A simple cover is provided that includes a combination of 1/2" (13 mm) / 3/4" (19 mm) knockouts for easy installation. The popular AtlasIED "C-ring/V-Rail" mounting system is provided for quick installation into existing acoustic drop tile ceilings and drywall construction. For new construction drywall applications, the optional FAP42-TR can be used.
All of the other popular features of the FAP42T are included in the new FAP42TC-UL2043, including a front-mounted tap selector switch (with included transformer bypass for 8-ohm applications), attractive snap-fit grilles, a high-performance 4" polypropylene cone driver with a 3/4" (19 mm) PEI tweeter, and precision crossover components for smooth, even coverage.
-
Press Fit gratings integrate better into contemporary architecture
-
Easy installation on tile or drywall ceilings using C-ring/V-rail tile bridge and dogleg mounting system (included)
-
Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications.
-
Front-mounted tap selector switch for easy system tuning adjustments. Includes transformer bypass configuration for direct-coupled 8-ohm operation.
-
Low depth speaker system (4") for limited space applications
-
UL1480/UL2043
