Horn speaker (PZA)

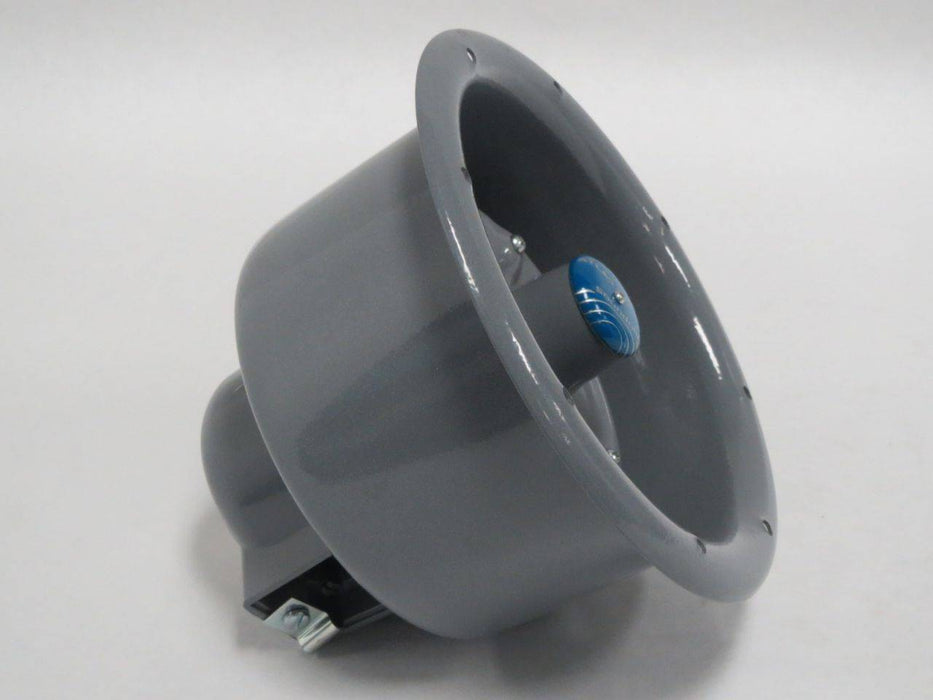

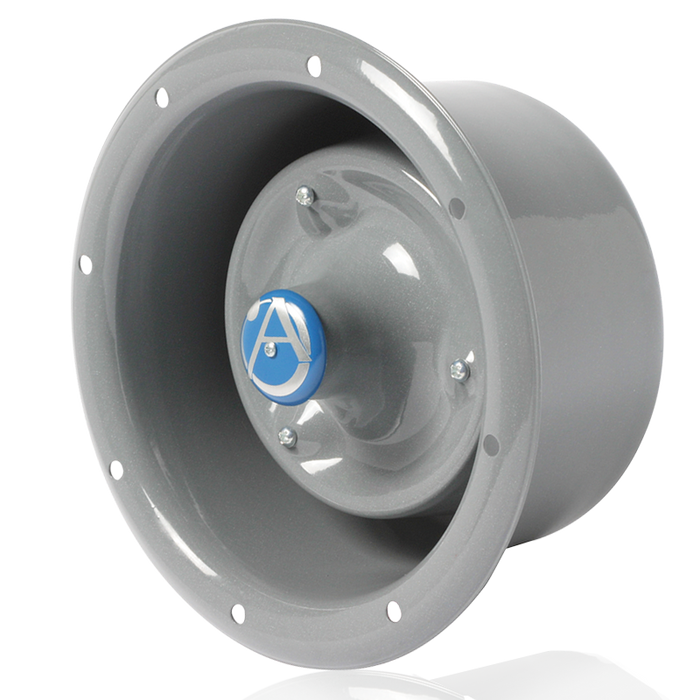

15 Watt, 25V/70V/100V Flanged Horn Speaker with Transformer

Provide 15 watts of continuous power with superior intelligibility and efficiency with AtlasIED APF Series Omni-Purpose® loudspeakers. Vandal-resistant units are designed for flush or flange mounting on panels, interior/exterior walls, or ceilings.

Metal construction withstands harsh temperatures, moisture and physical abuse. For added flexibility and optimal tuning convenience, the transformer-equipped APF-15T model includes the Vari-Tap® control/connection center with 7-position power/impedance selection switch.

Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a back box. However, for aesthetic considerations and retrofit convenience, the models will flange-mount to any standard-sized baffle and/or ceiling or wall cabinet capable of accommodating conventional 6" or 8" diameter speakers. Model FAMT-6 mounting kit is required for 8" models. Flush mounting can be achieved by mounting the APF-15 or APF-15T models in a 4" or 5-1/2" deep opening, respectively, or in an L20 series. The L20 series also includes mounting rings and baffles. The speakers have a gray baked-on epoxy finish.
