AP-S15HRIP

AP-S15HRIP

by ATLAS SOUND
Sold out
$ 14,445.25
MEASURES
COLOR: NEGRO

Power Distribution Unit (PZA)

1/2 Rack IP Addressable Power Distribution Unit

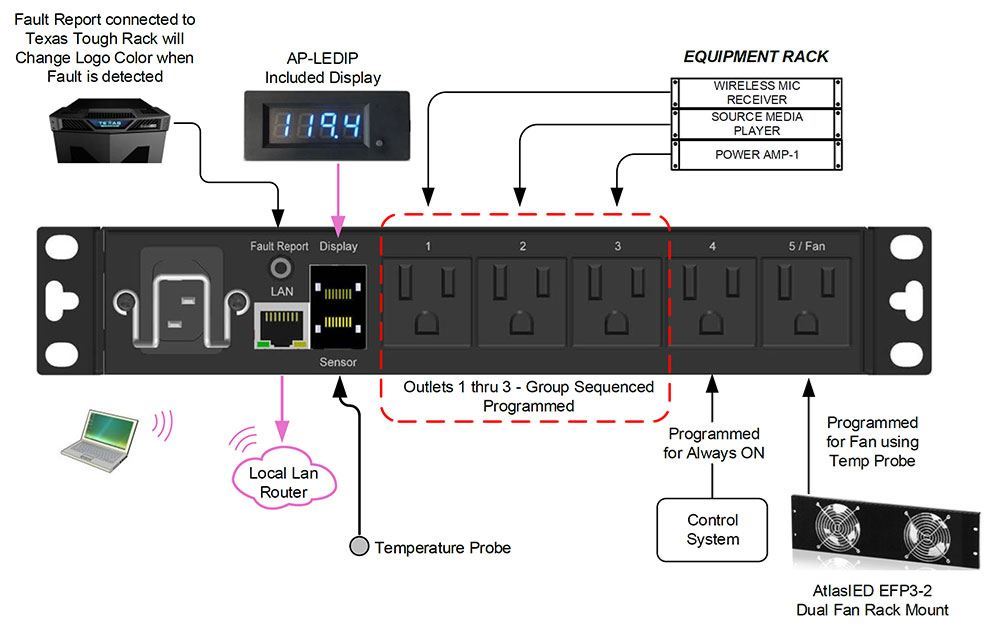

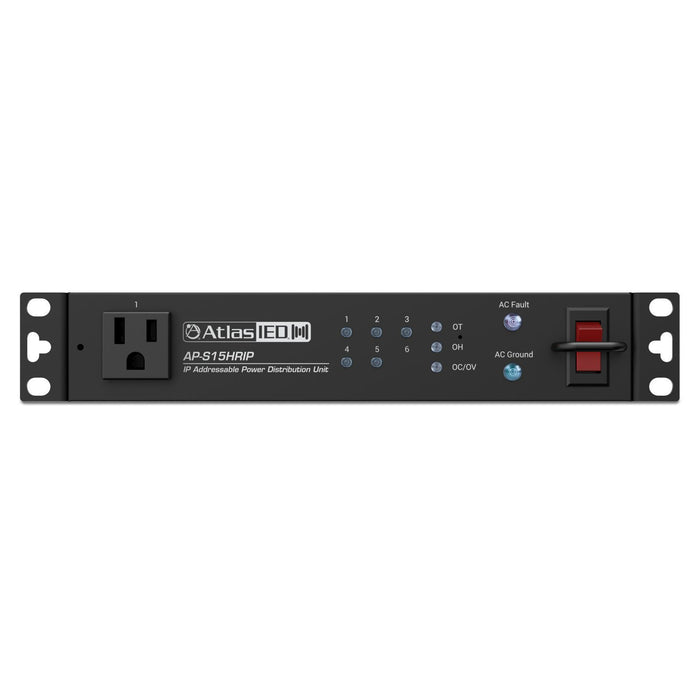

The AP-S15HRIP mid-rack power conditioner with LAN monitoring and remote control for AC power distribution management. The AP-S15HRIP features a web-based user interface (UI) that can monitor voltage, current, temperature, and humidity. Through the user interface, alarms can be configured to alert users when a fault condition occurs via the network user interface or fault contacts. The AP-S15HRIP's five rear outputs are programmable and can be scheduled to sequence on/off individually or in groups on a 24/7 schedule. Each AC outlet has an LED status indicator on the front panel that can also be used to manually turn the outlet on or off. This feature can be disabled through the user interface for added security. An unswitched AC outlet is also included on the front panel.

The AP-S15HRIP uses PC-based IP discovery software to automatically identify units connected to the network. An LED display, AtlasIED model AP-LEDIP, is included to provide a visual reference of voltage, current, temperature or humidity data inside the rack in real time. The AP-LEDIP can also be used to read the IP address of the unit, eliminating the need to use discovery software. The external temperature/humidity probe can be used to monitor rack climate conditions to activate a cooling system if necessary. Programmable alarm settings are easily configured with fault logs and fault reporting via the user interface. The unit or individual outlets can be tested or monitored in an active state via the network's automatic ping reset feature.

The AP-S15HRIP features noise filtering for unwanted radio frequency interference (RFI) commonly introduced into AC lines by nearby radio transmitters or wireless products that commonly impair video signals and can be heard as static on audio signals. The AP-S15IP is designed to allow the installer to select the length of power cable required for the installation. A detachable 2m IEC power cable with a retaining bracket is supplied with the unit.

The AP-S15HRIP is designed to be mounted in a half-width rack, but can also be mounted in standard 19" equipment racks using the optional PA702-RMK rackmount kit. This kit allows you to mount an AP-S15HRIP on its own or in conjunction with another Atlas half-width rack product such as the DPA-102PM, PA40G/PA60G, or MA40G/MA60G in a 1RU 19" space.

CHARACTERISTICS
  • 15A Rack-Mount Power Strip with Web-Enabled Monitoring and Control
  • Supports LAN (local area network) type networks
  • Integrated IP address display
  • IP Discovery PC Software
  • 6 total AC outlets: 5 programmable switched outlets on the rear panel, 1 unswitched convenience outlet on the front panel
  • Individual output manual on/off switch and LED indicator (on/off)
  • Detachable 15A IEC power cable with retaining bracket
  • RFI noise filtering
  • Ground fault connection indicator
  • web user interface
  • DHCP or Static Addressable IP
  • Voltage, current, temperature and humidity monitoring capabilities.
  • Overvoltage, current, temperature and humidity alarm settings.
  • Each power outlet can be managed individually remotely
  • User-definable names for each point of sale
  • User-definable delay time and sequence
  • Temperature setting for AC fan activation
  • Bug log with reports
  • GPIO fault reporting port
  • Password protection
  • APRST (Automatic PING Reset)
  • 24/7 user-definable schedules for individual power outlets to turn devices on or off
  • 2 meter humidity/temperature probe
  • The AP-LEDIP display panel shows voltage, current, temperature, humidity and IP address.
