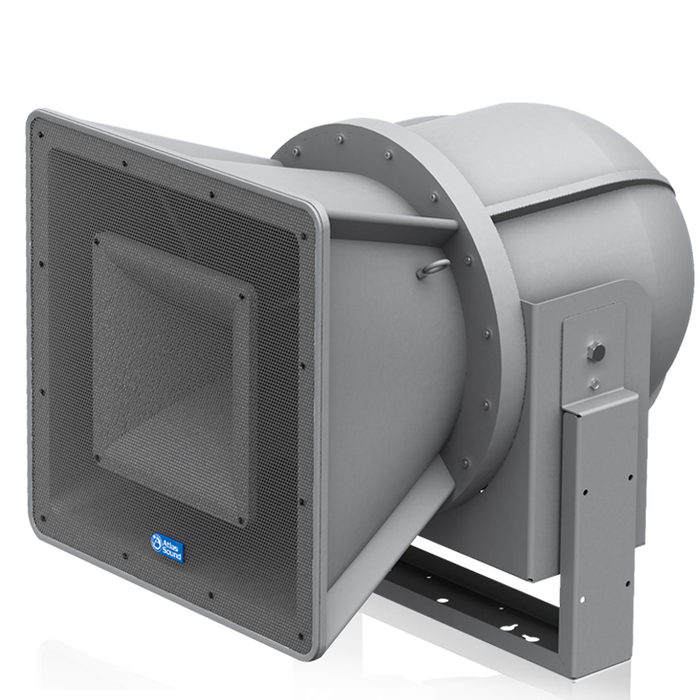

AH66-15-BSG (PZA)
15" 65° x 65° 2-Way Stadium Horn Speaker System
The AtlasIED AH66-15-BSG stadium horn is ideal for directional sound distribution where full-range reproduction, maximum intelligibility, and high sound pressure levels are required. Applications include football stadiums, athletic fields, baseball diamonds, convention centers, and auditoriums.
The AH66-15-BSG's weather-resistant construction features include a multi-baffle configuration to prevent moisture from damaging internal components. A perforated aluminum baffle covers the large mouth of the speaker, a secondary baffle is located in front of the high-frequency driver, and a third, well-perforated baffle protects the 15" cast-frame woofer. A weep hole is included on the back of the large speaker.
. "bell" to allow evaporation of any condensation that may accumulate internally.
-
250 watt power handling
-
Nominal system impedance of 8 ohms (70.7 volt operation through optional Atlas Sound Model AF140 transformer)
-
Constant directivity design provides controlled coverage of 65° horizontal by 65° vertical (2 kHz octave band)
-
The driver complement includes a 15" cast-frame woofer with a concentrically mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn.
-
Simple, weatherproof connection via a 4-pole parallel terminal block connector
-
Efficiency rating of 104 dB (1 watt/1 meter)
-
Full-range frequency response from 80 Hz to 15 kHz (± 5 dB)
-
The heavy-duty stainless steel mounting bracket (included) allows for easy installation on most flat surfaces.
-
Maximum output of 128 dB (rated power at 1 M)
