The XPA1000 Amplifier (PZA)
1000W Commercial Amplifier, 2 Channel, 70V, Class D, RS232, 12V Trigger, Remote Control
The XPA1000 is a professional-quality, 2-channel 70/100V amplifier that delivers up to 500 watts per channel to maximize the sound of an indoor or outdoor speaker system. Compact and energy-efficient, this commercial-grade rack-mount amplifier features Class-D amplification technology that is extremely power-efficient yet capable of producing a powerful output signal for large, medium, or small audio systems, such as restaurants, meeting rooms, sports venues, and other spaces where multiple speakers are required.

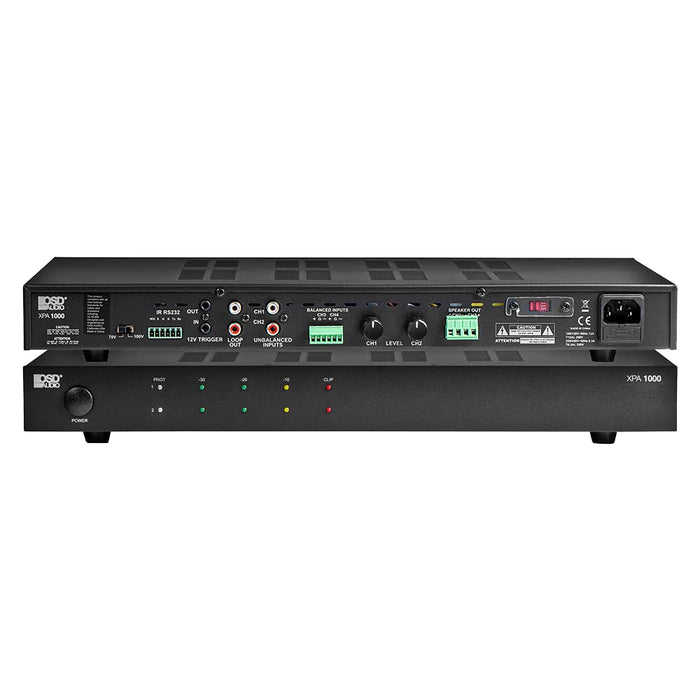

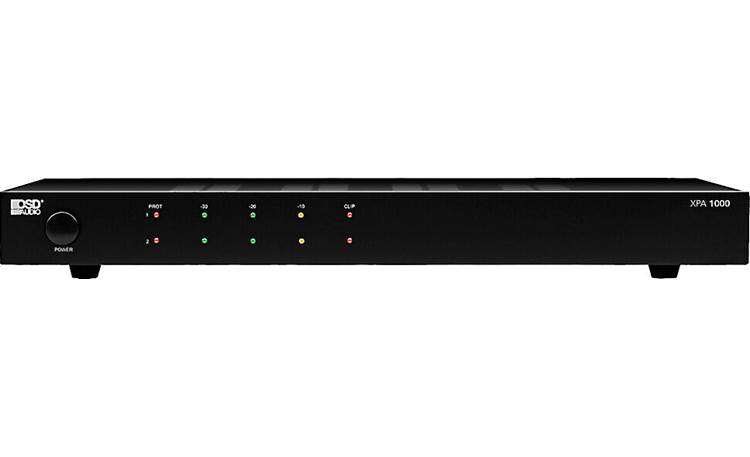

Our affordable commercial amplifier includes two independent channels to ensure maximum performance and low distortion and has a 70/100V switch (70V for Canada and 100V for Europe/Overseas). The sleek front panel includes a power switch, LED protection indicator lights, LED output level meters (-30, -20, -10), and clip indicator lights. The rear panel includes output gain controls that can be used to increase or decrease the output levels on both channels. The XPA1000 can be used to teach IR commands to a programmable integrated universal IR remote control, zone control system, or other IR routing device.
Big power from a small footprint
Energy and space saving, this amplifier generates high power from a small, easy-to-mount space. The XPA1000 measures less than 17" wide, 2" high, and 17" deep, is rack-mountable, and mounting hardware is included.
TECHNICAL SPECIFICATIONS
- Amplifier type: Multichannel: 70V/100V
- Amplifier class: Digital Class D
- Channels: 2
- Power handling: 500W per channel
- Maximum power output: 1000W Total
- Frequency response: 20Hz - 22kHz +0/-2dB
- Signal-to-noise ratio: >90dB A-weighted
- Line level input sensitivity: 510 mV
- Inputs: Balanced and Unbalanced
