SVC-405 Control (PZA)
300W Decora-Style Volume Control with Impedance Matching and A/B Switching White

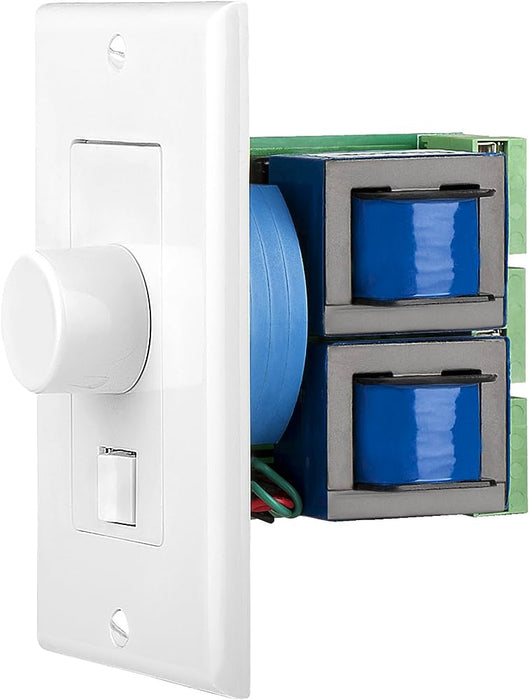

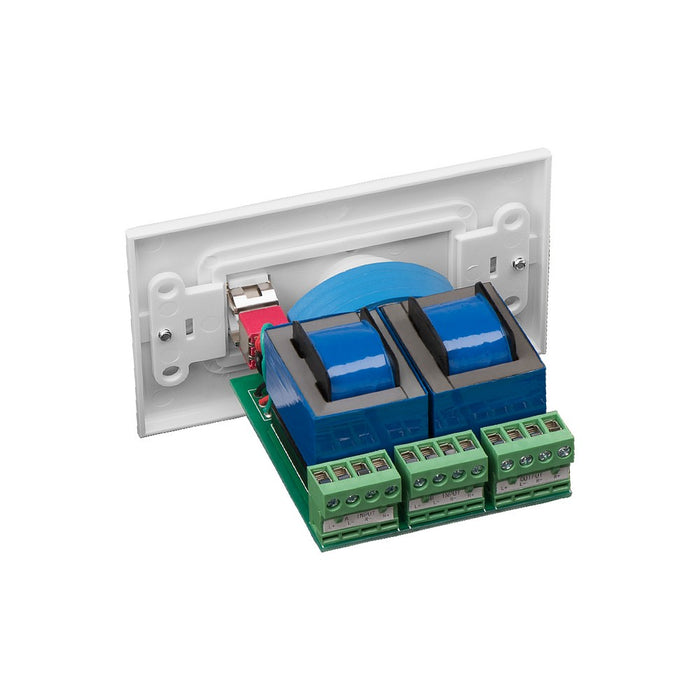

OSD Audio SVC405 is a 300 Watt impedance matching volume control with two-source (A/B) switching that allows you to adjust the volume of one pair of speakers independently of other speakers and control the volume of two pairs of speakers and one audio source. Ideal for both home and commercial installations, this decorative in-wall volume control includes an impedance matching feature that stabilizes the ohm load so multiple volume controls can be connected in parallel without damaging the amplifier. The SVC405 maintains full high-fidelity audio frequency response without low-frequency attenuation and is rated at 300 watts per channel (100W RMS). The rotary knob adjusts the volume from inaudible to loud, and when you order the SVC405, you get the complete kit including the junction box, screws, and white trim plate.
- Decora-style decorative impedance-matching volume control for whole-house audio systems and dedicated audio zones
- Rated at 300 Watts (100 RMS) per channel with minimal bass roll-off
- Includes 2-source switching (A/B) for two pairs of speakers and one source
- The impedance matching feature stabilizes the ohm load so that parallel connections of multiple volume controls can be installed without damaging the amplifier.

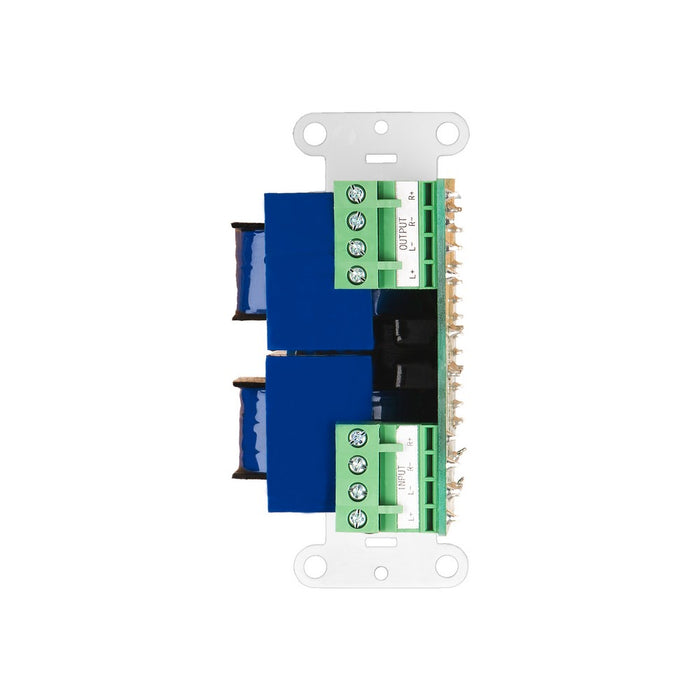

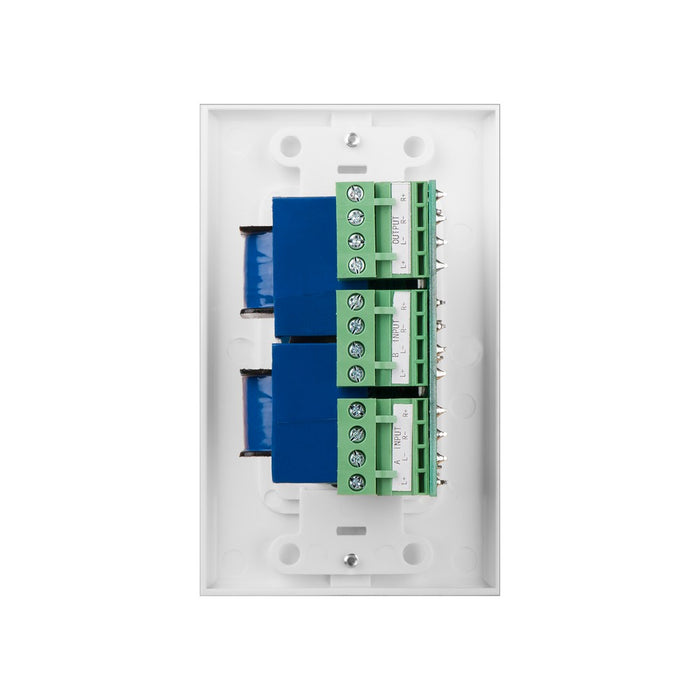

- Accepts wiring up to 14 gauge and fits in a standard junction box with a depth of 2.9 inches. Includes junction box and screws, as well as a white backplate to match any room's decor.
- Precision electronics provide low distortion and a rule-flat frequency response
- Rotary-style knob for a wide range of listening volumes
- Installs easily and works with almost any audio system
