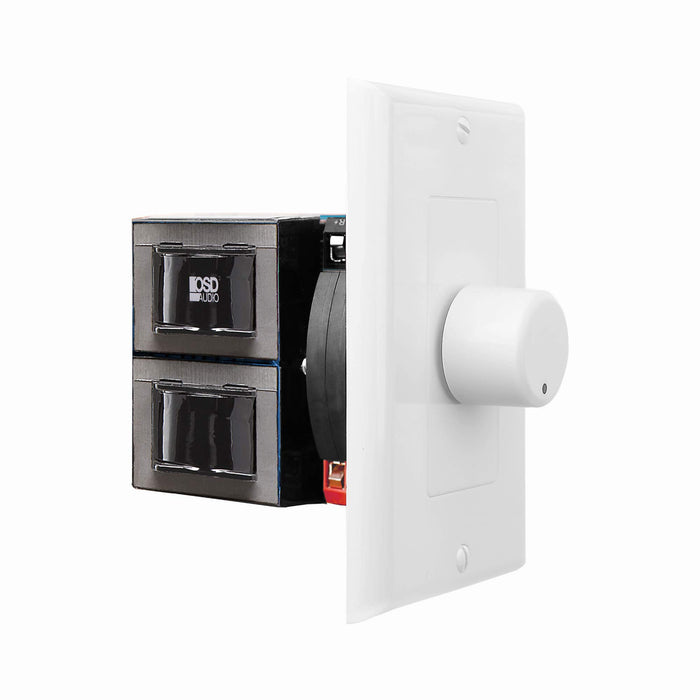

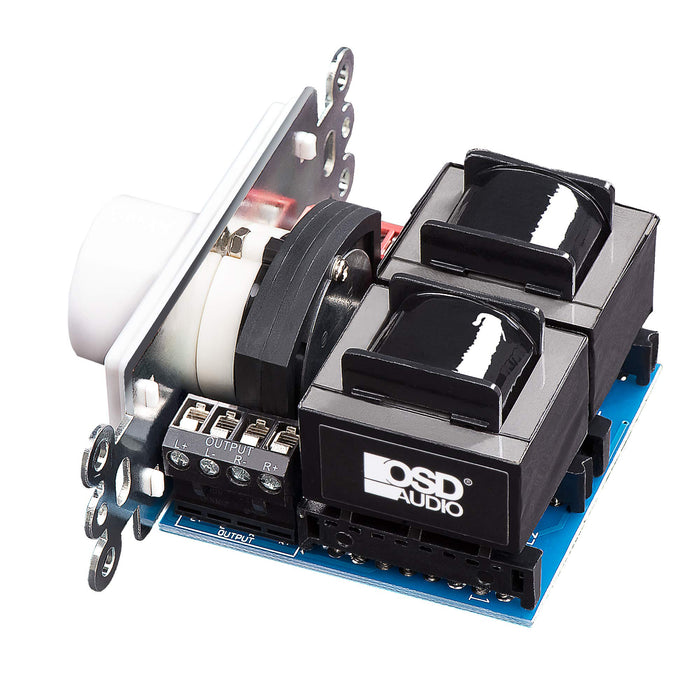

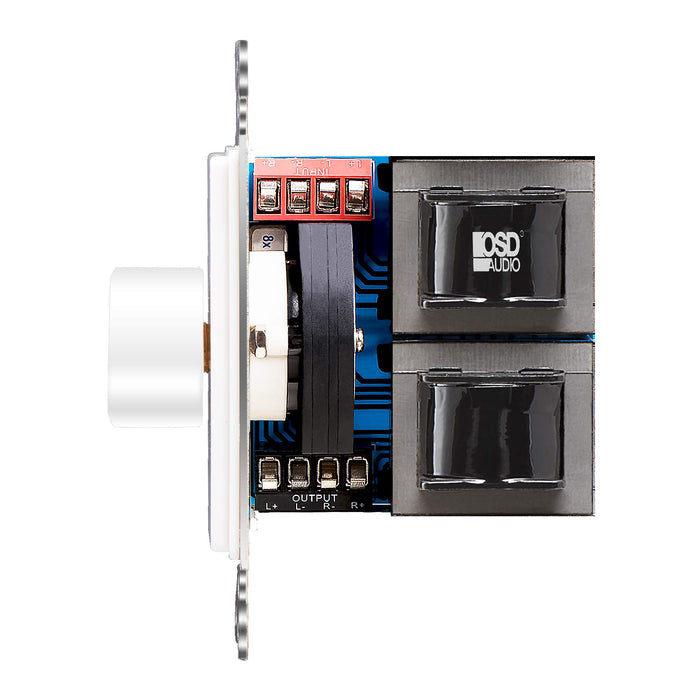

SVC-300 Control (PZA)
Decora-style rotary speaker volume control with 300W impedance
The OSD Audio SVC300 is an impedance-matching volume control that allows you to adjust the volume of a pair of speakers independently of other speakers within a whole-home audio system. Ideal for areas such as dining rooms or conference rooms where you may want softer volumes or for saunas or garages where you may want louder volumes, the SVC300 maintains the full high-fidelity audio frequency response without low-frequency attenuation. Equipped with the same volume control features as the ones that cost twice as much, the SVC300 has a maximum power of 300 watts and includes adjustable jumpers for adding up to eight pairs of 8-ohm speakers simultaneously. The impedance matching feature helps stabilize the ohm load returning to the amplifier or receiver to prevent overheating and damage to expensive equipment. A complete volume control kit that fits into a standard single-gang box, The SVC300 also includes the junction box, screws, and decorative plates in various colors (white, ivory, and almond) so you can choose the color that best matches your room. This versatile whole-house volume control is compatible with almost any dedicated audio zone or whole-home system, and the 12-step rotary knob adjusts the volume from inaudible to loud and everything in between.
Characteristics:
- Decora-style impedance-matching volume control for whole-house audio systems and dedicated audio zones
- Rated at 150 watts per channel with minimal bass roll-off
- The impedance matching feature stabilizes the ohm load so that parallel connections of multiple volume controls can be installed without damaging the amplifier.
- Front-mounted adjustable jumpers allow easy adjustment when connecting multiple pairs of speakers to a single receiver or amplifier.
- Accepts wiring up to 14 gauge and fits in a standard outlet box with a depth of 2.9'. Includes junction box and screws, as well as white, ivory, and almond trim plates to match any room's decor.
- Precision electronics provide low distortion and a rule-flat frequency response
- 12-step linear rotary-style knob for a wide range of listening volumes
- Installs easily and works with almost any audio system
