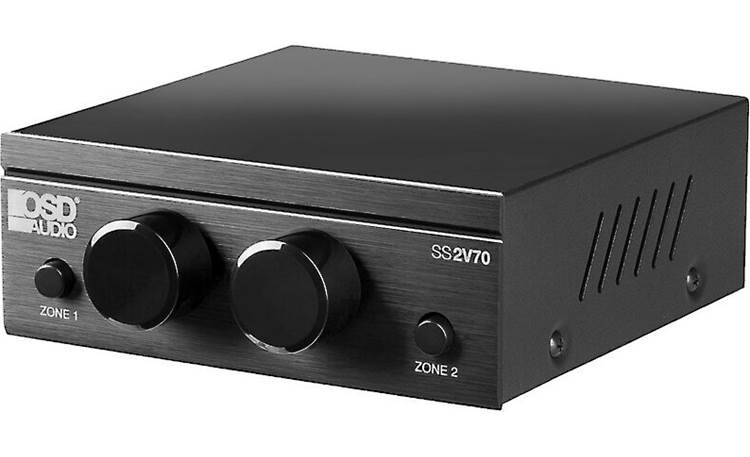

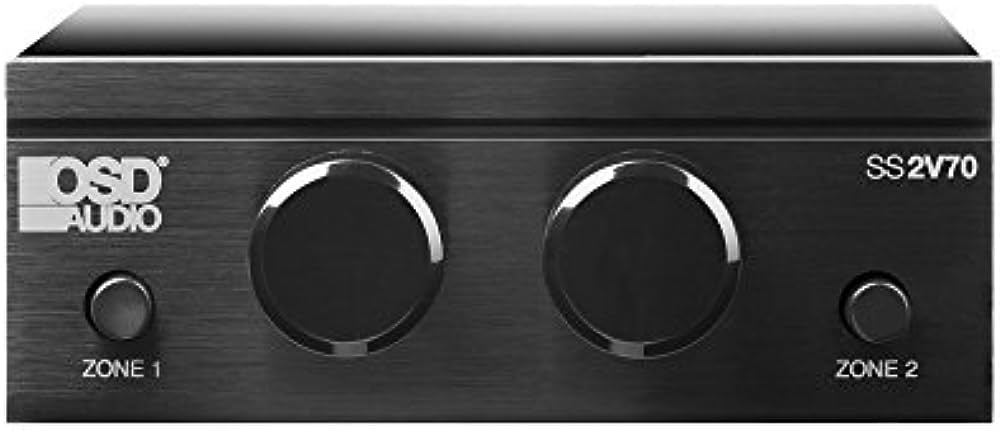

Control SS2V70 (PZA)
2 x 70V mono zone speaker selectors with 2 x 100W integrated volume controls and SS2V70 pass-through output

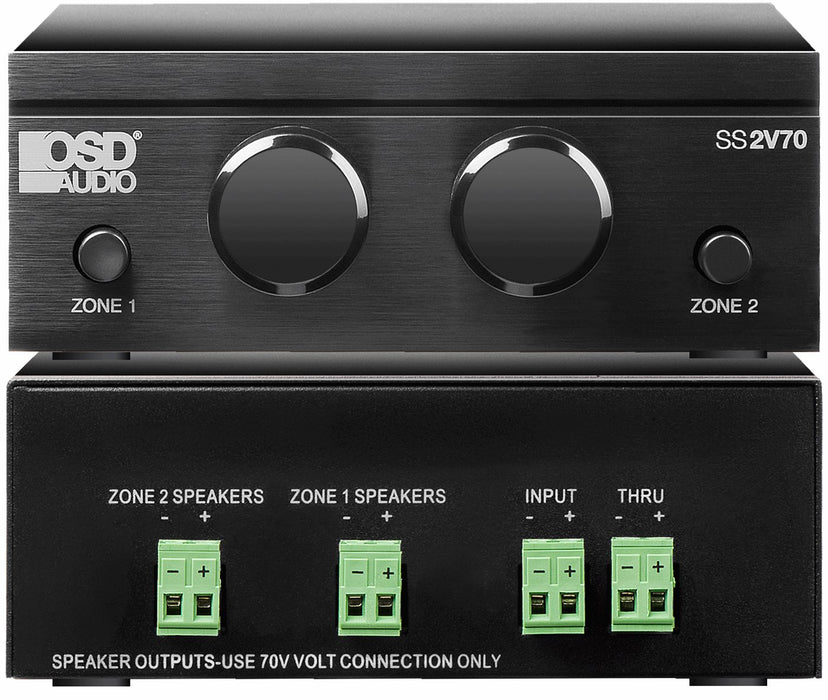

The SSVC2V70 is a unique 70V speaker selector that features 2 independent zones, each controlled by a 100 watt 70V mono volume control with a rotary style knob and each zone also has an on/off switch. The unit has a single 2-conductor input and pass-through allowing stacking of additional SSVC27V speaker selectors, only limited by their application. Standard 70V rules apply to the number of speakers used per zone, equaling the available power of the 70V amplifier.
TECHNICAL SPECIFICATIONS
- Speaker Selector Type: 70V Mono Single Channel
- Number of zones or speaker pairs: 2
- Single source
- Power handling: 100W per channel
- Frequency response: 20 Hz-22 KHz (+0 dB, -0 dB)
- Direct pass-through allowing additional SS2V70 stacking, only limited by its application
- Steps: 33 dB, 10 steps plus total off
