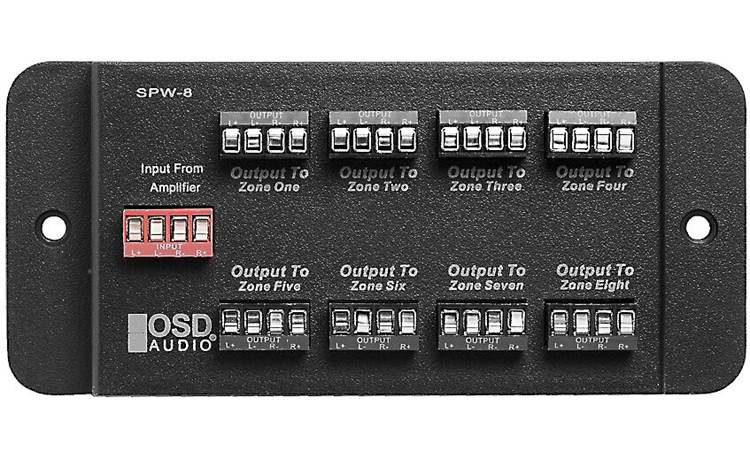

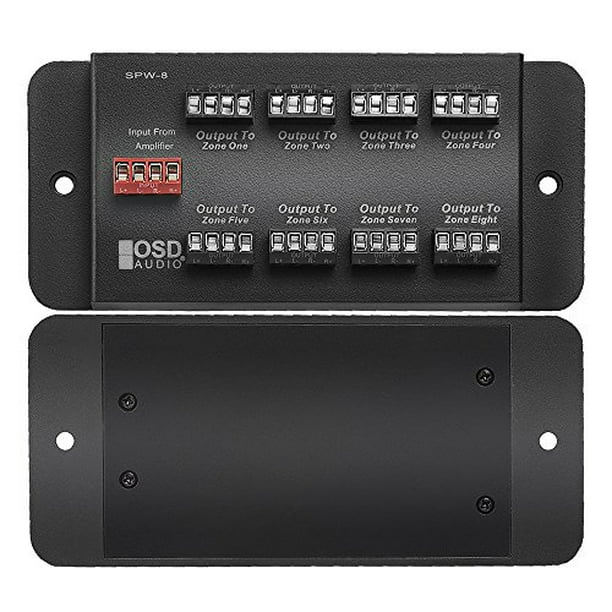

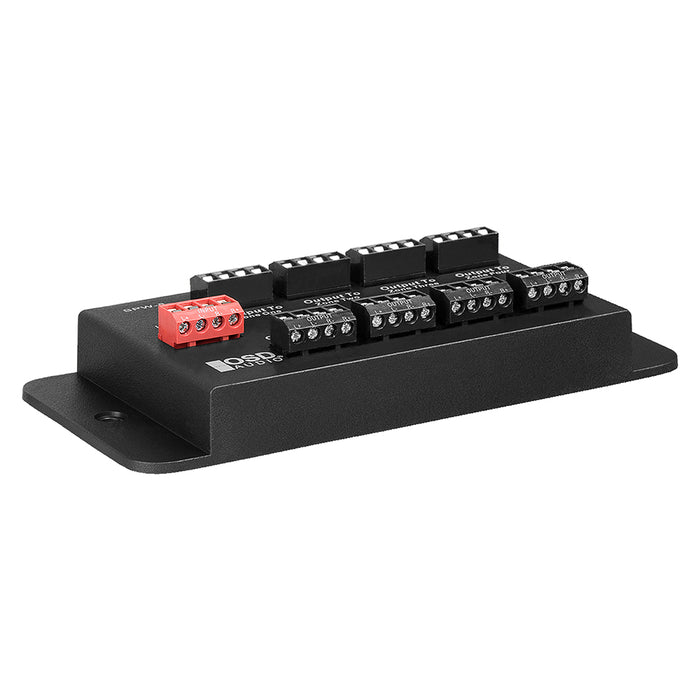

SPW8 Control (PZA)
8-Zone Speaker Distribution Panel

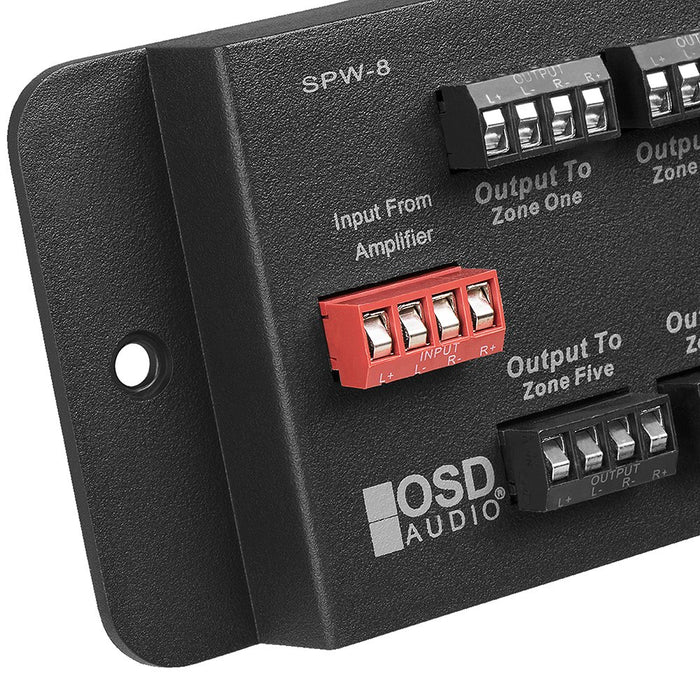

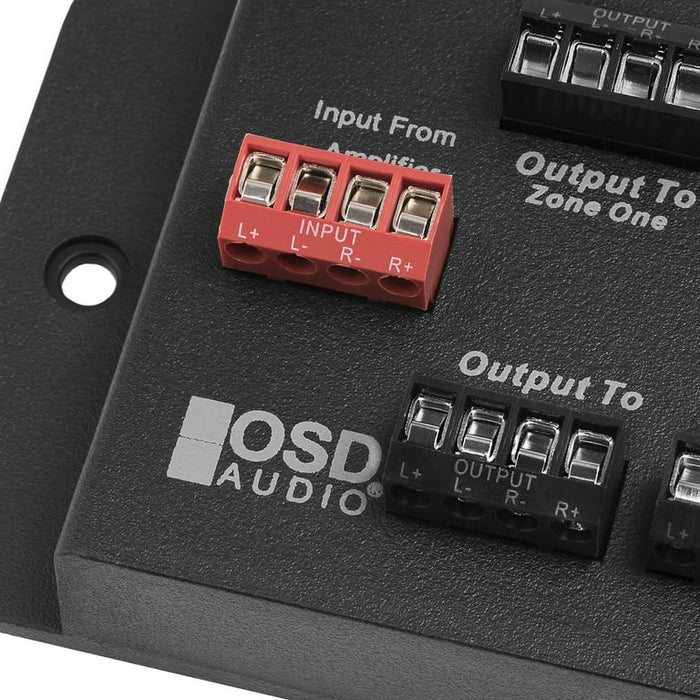

The SPW-8 is a two-channel, one-input, eight-output, wide-frequency stereo volume control distribution center. It provides a simple solution for complex speaker installations and provides an easy way to connect two to eight volume controls and stereo speaker pairs to a single stereo receiver/amplifier. All outputs are labeled, making it easy to connect and troubleshoot a system.
TECHNICAL SPECIFICATIONS
- Power Handling: 150 watts RMS per channel (suitable for use with 300 watt per channel receivers/amplifiers)
- Frequency response: 20 Hz - 22 kHz (+0 dB, -0 dB)
- Wire Size Acceptance: 2 or 4 conductors, stranded, 16 AWG to 14 AWG
- Dimensions: 3.40 inches long x 1.70 inches wide x 7.00 inches high
- Maximum number of volume control/speaker
- Connections: 8 pairs
- Must be used with impedance matching volume controls
