THE SMP-500DSP (PZA)
SMP500 DSP 800W Single Channel Class D Subwoofer Amplifier, Auto-Detect, ETL Listed, 4 to 8 Ohm, CE Certified
The OSD Audio SMP500DSP Class D subwoofer amplifier is designed for use with higher power passive subwoofers, such as in-wall subwoofers that require external power. It is rack and 1U chassis mountable. This rugged sub amp is not for the faint of heart. It delivers 1000 watts of peak power and 400W RMS at 4 ohms, so to say it's powerful is an understatement. This sub amp does more than just supply power. You will notice an improvement in the overall sound quality of your entire home theater surround sound system.
Characteristics :
- Dedicated mono Class D subwoofer amplifier
- 1000W Peak/400W RMS at 4 ohms
- Variable high cut filter 30Hz-150Hz, front panel knob.
- Additional front panel controls: phase switch and volume control
- Choice of signal level input or LEF (low frequency effects)
- Power-on option: music detection, manual power-on, or 12V trigger
- Adjustable volume/gain control limiter
- Signal inputs (low level) and speaker level (high level)
- ETL Switchable 110/220V, CE
TECHNICAL SPECIFICATIONS
-
Amplifier class: Class D
- Channels/Zones: 1
- Output power at 8 ohms: 250 W RMS/500 W peak
- Output power at 4 ohms: 400 W RMS / 800 W peak
- Frequency response: 10Hz - 150Hz
- Impedance: 8 Ohm and 4 Ohm Stable
- Transformer type: switching mode

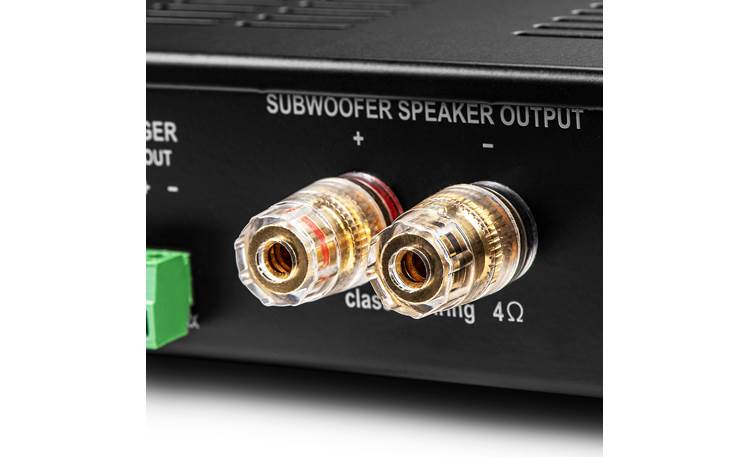

- Input terminals: speaker level (high), signal level (low) RCA
