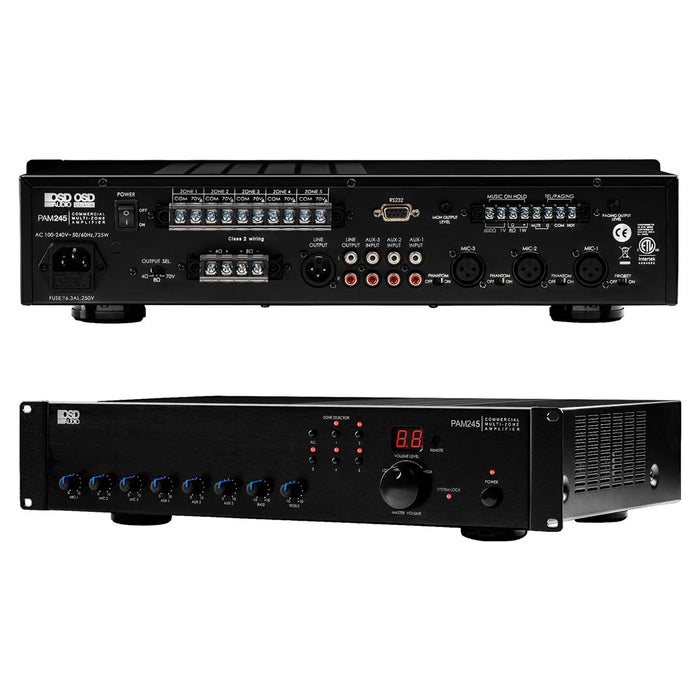

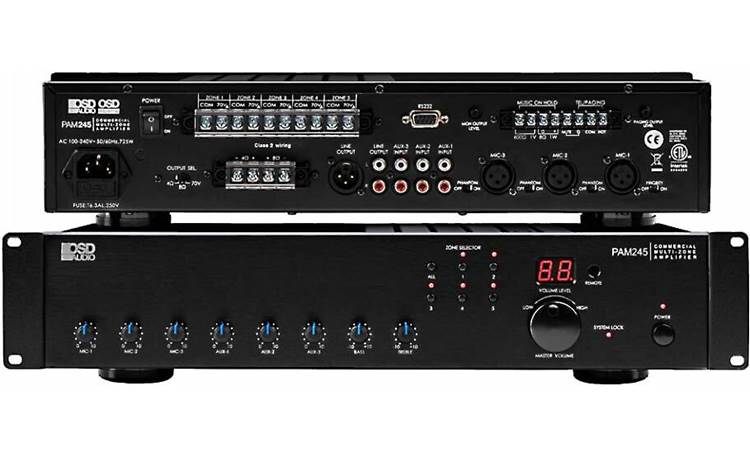

The PAM-245 Amplifier (PZA)
PAM245 240W High Power Class D 70 Volt Multi-Channel Commercial Amplifier with IR Remote Control
We took our customers' feedback and created the perfect amplifier for almost any application. In addition to the great features you expect from an OSD Audio amplifier, the PA Series has ample inputs, an included IR remote control, an RS232 input for integration with control systems, front-panel locking capability, and includes all rack-mounting hardware. With a sleek appearance and all these additional features at a price similar to previous-generation amplifiers, the PA Series is sure to become your favorite amplifier.
TECHNICAL SPECIFICATIONS
- Amplifier Type: 70V/8-4 Ohm Commercial Mixer/Integrated Power Amplifier
- Amplifier class: Digital Class D
- Channels: 5 Zones; 70V with independent on/off switch per zone
- Power Handling: 120W (RMS)/ 240W (MAX) per channel into 8 ohms
- Power Handling: 240W (RMS)/ 480W (MAX) per channel at 4 ohms
- Power Handling: 70V Rating (Watts): 220W
- Frequency response: 55Hz-15kHz, (+0dB, -3.0dB)
- Impedance: 8 Ohm and 4 Ohm Stable

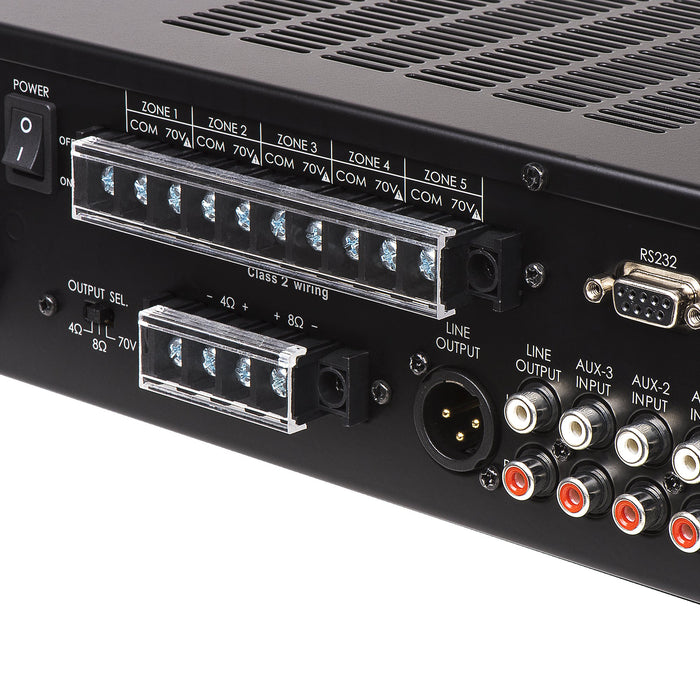

- Music on Hold and Telephone Interruption Rear panel connections with variable level controls
