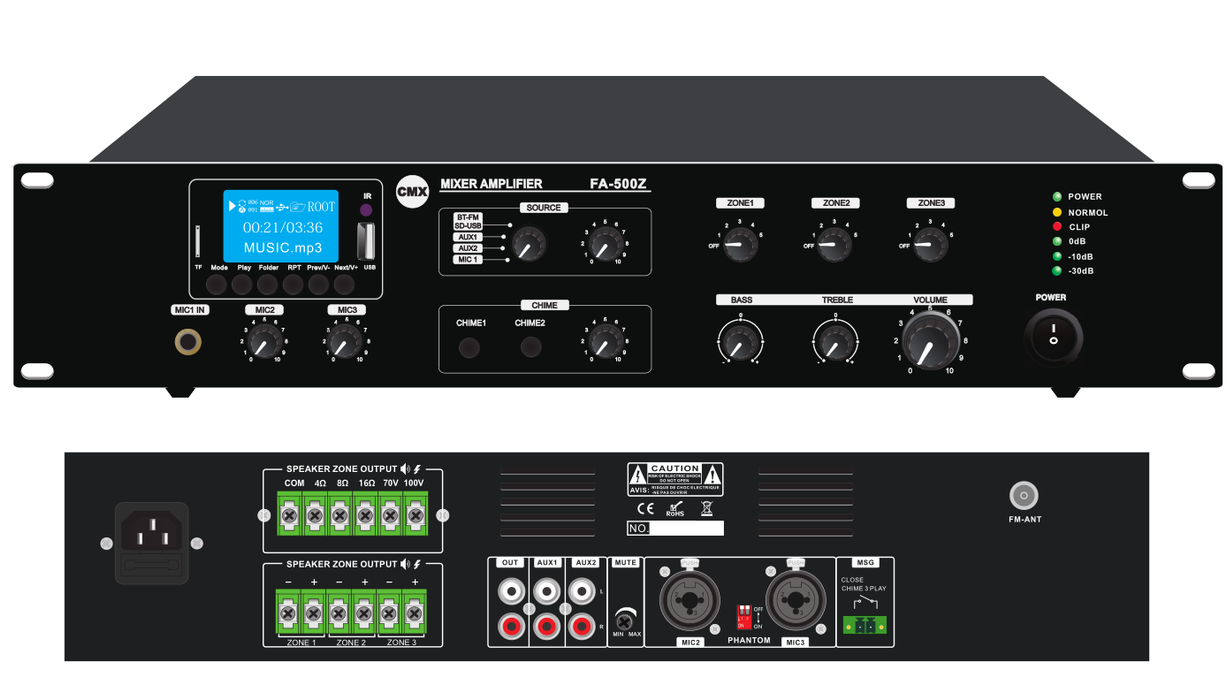

FA-350Z (PZA)
3-zone mixer amplifier with ATT/Mp3/USB/FM/Bluetooth, FA-120Z, FA-240Z, FA-350Z, FA-500Z
3-zone mixer amplifier with audio source player, its rated power is 120W, 240W, 350W to 500W. 3 microphones, 2 auxiliary, support various 100V/70V and 4-16 ohm speaker systems.
The FA-Z series PA mixer amplifier is designed for small 3-zone commercial audio solutions, each zone speaker can be set to a different output volume. The 19” rack-mountable mixer amplifier built-in audio source player integrates a zone paging controller, a preamplifier, a power amplifier and a media player into a 2U high unit, its rated output power is 120W, 240W, 350W to 500W and comes with 3 microphone and 2 auxiliary inputs. Supports 100V/70V and 4-16 ohm speaker applications.
Characteristics:
3-zone public address (PA) mixer amplifier.
2U high 19” rack mount amplifier.
Rated powers of 120 W, 240 W, 350 W to 500 W.
3-zone 100V speaker outputs.
4-16Ohm-70V-100V single zone speaker outputs.
3-zone speaker outputs with independent volume control.
Built-in MP3 player via USB and SD, FM tuner, Bluetooth.
With IR remote control for source switching and volume control.
Three microphone inputs, Mic1 (6.3 mm) and Mic/Line 2-3 input (XLR).
Mic2-3 balanced input with mic/line switch and 48V phantom power.
Aux inputs 1-2 on rear panel via RCA.
VOX Mic1 has the highest input priority except for the EMC input.
With two pre-announcement bells and volume control.
Protection against overload, short circuit and high temperature.
