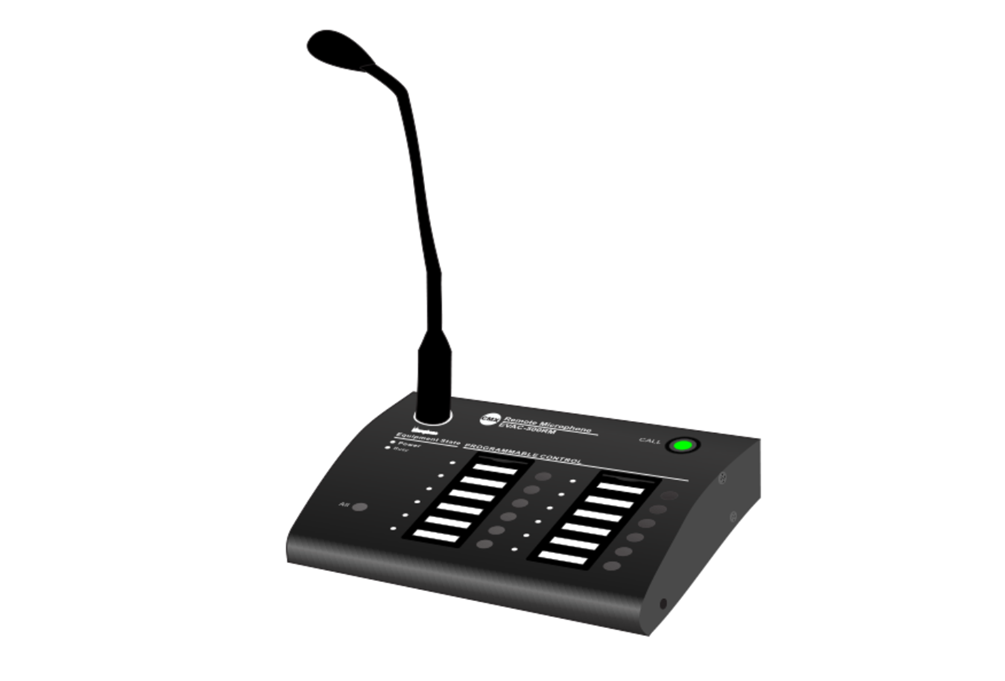

EVAC-500RM
EN54-16 Remote Microphone
The EVAC-500RM remote microphone or call station is EN54-16 certified and designed exclusively for the EVAC-500 public address and voice evacuation system. The remote microphone is used for live business and commercial announcements in selected or all zones. The remote microphone is designed with 12 zone buttons with busy and work indicators. One or more EVAC-12KD external 12-zone expansion keypads can be cascaded for up to 120-zone operation. Up to 32 remote microphone units can be connected to the voice evacuation system using standard shielded CAT-6 cable and RJ-45 connectors in a redundancy loop of up to 600 meters. The talk button can be a PTT or a pre-set latching type using the DIP switch on the back of the microphone. A green LED indicates the active microphone and zone status. The remote microphone is powered with 24 VDC by the EVAC-500 controller. The voice evacuation system strictly follows the Construction Products Regulation (EU) No. 305/2011: EN54-16:2008 Voice alarm indication and control equipment.
Characteristics
- Remote microphone or call station for the EVAC-500 voice evacuation system.
- EN54-16 certified firefighter microphone.
- Use of live advertisements for commercial and business areas.
- Multi-zone, single-zone, and all-zone localization.
- Each microphone has capacity for 12 zones.
- Up to 120 zones by cascading the EVAC-12KD zone keypad.
- Supports 32 remote microphones loop redundancy connection. More features
