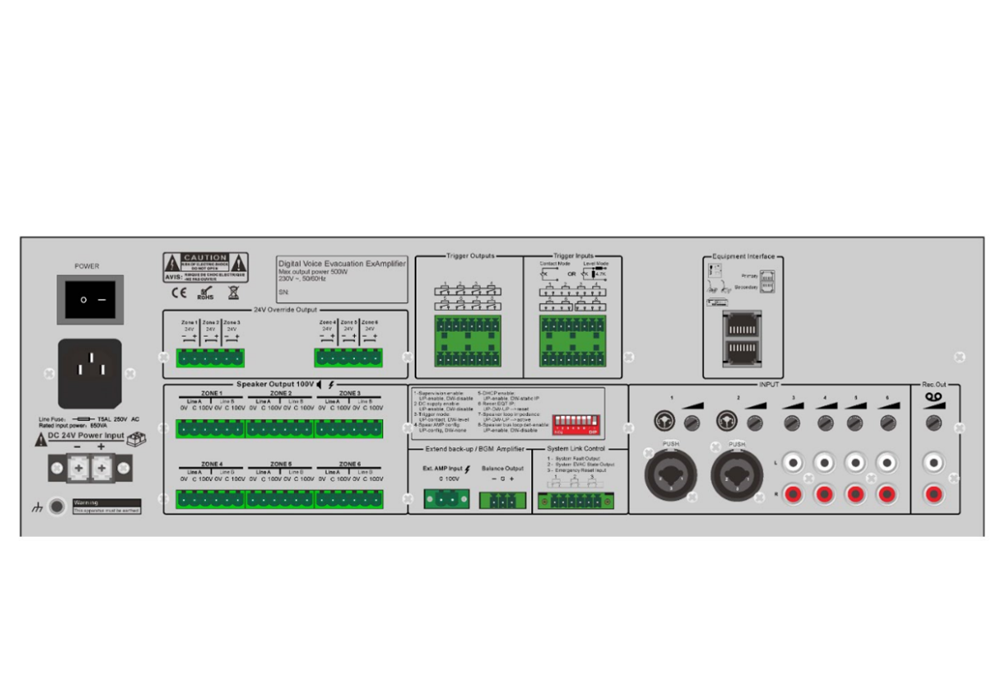

EVAC-240RT
EN54-16 Voice Evacuation Router
The EVAC-240RT voice evacuation router is one of the most important equipment of EN54-16 certified voice evacuation and public address system. The all-in-one voice evacuation and alarm router with the same features of EVAC-240 voice evacuation controller, including zone paging controller, monitoring of all main signal lines, amplifier switching, speaker line supervision, power supply and power amplifier monitoring, and fire alarm interface, while all main signals are fed from the master controller. The voice evacuation router is innovated with the most advanced DSP (Digital Signal Processor) to ensure its high-fidelity audio performance and superior signal processing in case of commercial announcements and emergency evacuation. Each router incorporates 6-zone speaker outputs, rated output power of 240W. The voice evacuation router must be preconfigured via the supplied software for microphone number, zone number, zone load, speaker monitoring, fire alarm mode, alert message/EVAC zone output, AC/DC, etc., and then synchronized with the master controller and router. The voice evacuation system strictly follows the Construction Products Regulation (EU) No. 305/2011: EN54-16:2008 Voice alarm indication and control equipment.
Characteristics
- EN54-16 Certification No. I/ISEETC. 000620190305.
- All-in-one digital voice evacuation system.
- Integration of voice evacuation router, zone location controller, monitoring of all main signal lines, amplifier switching, speaker line supervision, power supply monitoring, and power amplifier interface and fire alarm interface.
- Same features as the EVAC-240 master controller while all main signals are fed from the master controller
- Automatic transmission of EVAC and alert of 256 voice messages to preset zones.
- AB speaker line monitoring to prevent speaker line failures.
- Backup power amplifier management. More features
