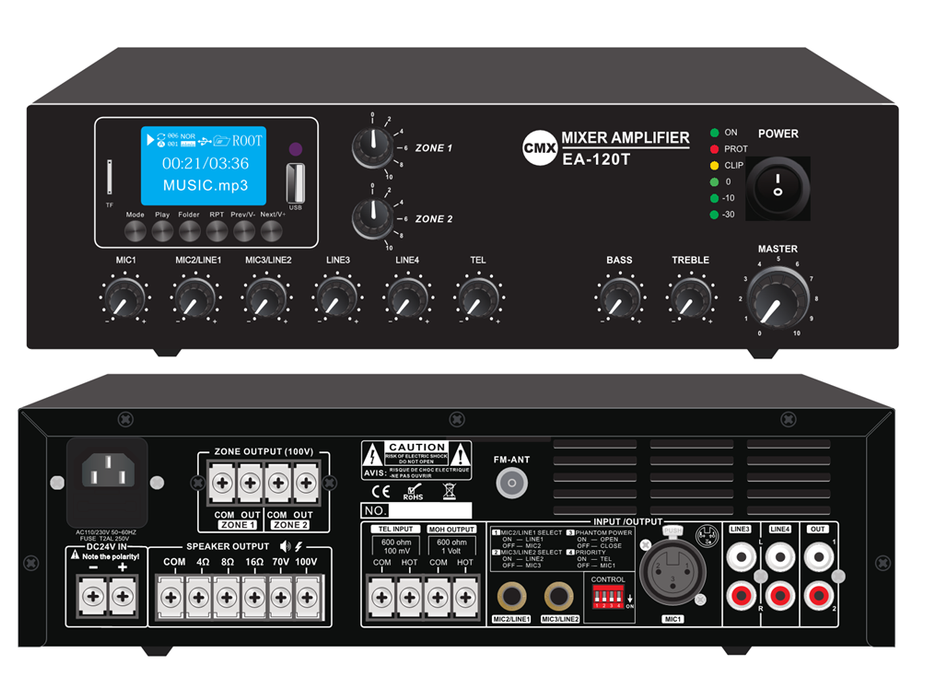

EA-30T (PZA)
2-Zone Mixer Amplifier with USB SD FM Blue Tooth EA-30T EA-60T EA-120T
2-zone mixer amplifier with audio sources, with independent 2-zone volume attenuator, with 3 microphones, 2 auxiliaries, 100 V and 8 Ohms. The mixer amplifier has a rated output power of 30W, 60W to 120W, and is designed to connect multiple 100V speaker units for a background music system and a two-zone PA system.
2-Zone Mixer Amplifier with USB SD FM Bluetooth
EA-30T/EA-60T/EA-120T
Feature:
Compact 2-zone PA amplifier
2-zone desktop mixer amplifier with MP3 player, FM radio and Bluetooth
Rate output power in 30W, 60W to 120W
100V or 70V speaker output and 4 ohm-8 ohm-16 ohm
2 100V zone speaker outputs with independent zone attenuator
MP3 player with USB/SD input on front panel, IR remote control for MP3 player, FM radio and Bluetooth
LED indicators for power, clip, protection and signal.
Balanced XLR input Mic1 with phantom power on/off DIP switch and VOX priority on/off
Switchable Mic/line input 2-3 unbalanced 6.3 mm jack
Line input 1-2 RCA input and one RCA line output
Secondary priority telephone input and MOH (Music on Hold)
Volume control for Mic1-3, line1-2, TEL, bass/treble and master
Full amplifier protection includes short circuit, clip, overload and high temperature.
230 V AC and 24 V DC both power systems
Optional to add DAB and DAB+ module
