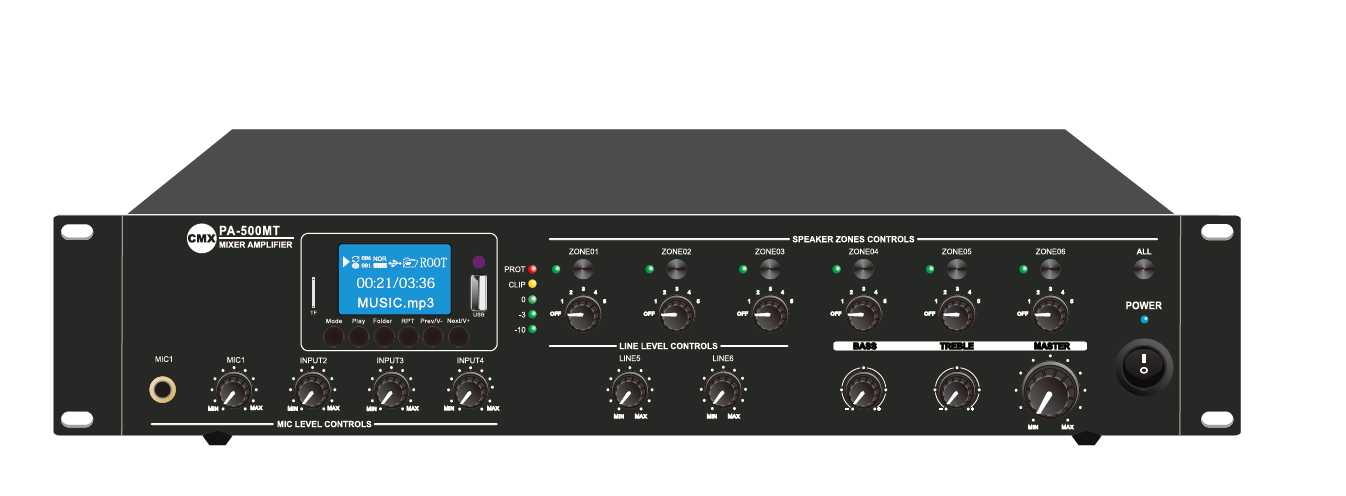

DA-240MT (PZA)
DA-60MT, DA-120MT, DA-240MT, DA-350MT, DA-500MT 6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth
DA-500MT series 6-zone mixer amplifier with ATT/Mp3/USB/FM/Bluetooth, its output power from 60W to 120W to 500W. It supports 4 microphone inputs and 2 line inputs plus 6 remote zone paging microphones, its 6-zone output with independent volume control.
- 6-zone commercial PA mixer power amplifier.
- 2U high 19” rack mount amplifier.
- Rated powers of 60 W, 120 W, 240 W, 350 W to 500 W.
- 6 100V zone speaker outputs.
- Six-zone speaker outputs with independent volume control.
- Built-in MP3 player via USB and SD and FM tuner.
- Four microphone inputs, Mic1 (6.3 mm) and Mic/Line 2-4 input (XLR).
- Line inputs 1-2 on rear panel via RCA.
- EMC input on the rear panel with maximum priority via RCA.
- An amplifier capable of handling 6 DA-500RM remote location microphones up to 300 meters.
- VOX microphone 1 has the highest input priority, except for the EMC input.
- Volume control for Mic1-4 and Line 1-2, bass and treble and zone volume control on the front panel.
- AC and DC power, protection, clip, six-zone status indicators and output level meters.
- Protection against overload, short circuit and high temperature.
- AC 230V and DC24V operating system.
Description:
The 6-zone PA mixer amplifier with MP3 and FM tuner, its rated output power of 60W, 120W, 240W, 350W to 500W, is ideal for use in schools, supermarkets, banks, hotel background music and voice use. It is an all-in-one solution with two power supplies, a preamplifier and a mixer power amplifier in a 19” 2U high unit, which is economical yet reliable and high-performance. Integrates 2 audio sources into one mixer amplifier, plus Mic1 (6.3mm) and Mic/Line 2-4 (XLR) input, two line inputs, one EMC input and one RS45 input for 6-zone remote paging microphone. Mic1 VOX with maximum priority except EMC input. A USB slot and SD slot on the front provide easy access and operation for the installer and end user. The amplifier is designed with complete protection against overload, short circuit and high temperature to prevent any damage. These amplifiers are suitable for applications in banks, mosques, schools, hotels, restaurants, theme centers and shopping malls.
