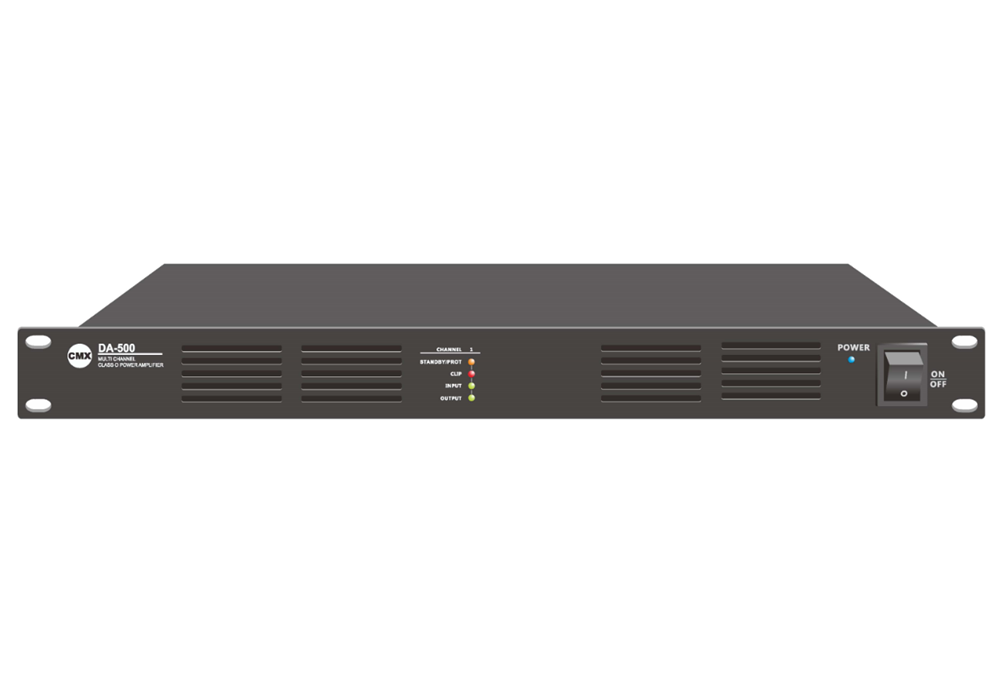

DA-240 (PZA)
Class D Power Amplifier DA-120 DA-240 DA-350 DA-500
Class D power amplifier is used for PA Class D amplifiers or commercial power amplifiers, 120W/240W/350W/500W RMS, supports 100V and 8 ohms, 1U height, 19-inch rack mountable, and 85% efficiency.
Characteristics:
- Digital power amplifier with switched-mode power technology
- Class D PA power amplifier with minimum power consumption
- 1RU height for less rack space and less heat generation
- Single-channel power amplifier in a 19” rack-mount unit
- Rated output power of 120W, 240W, 350W and 500W

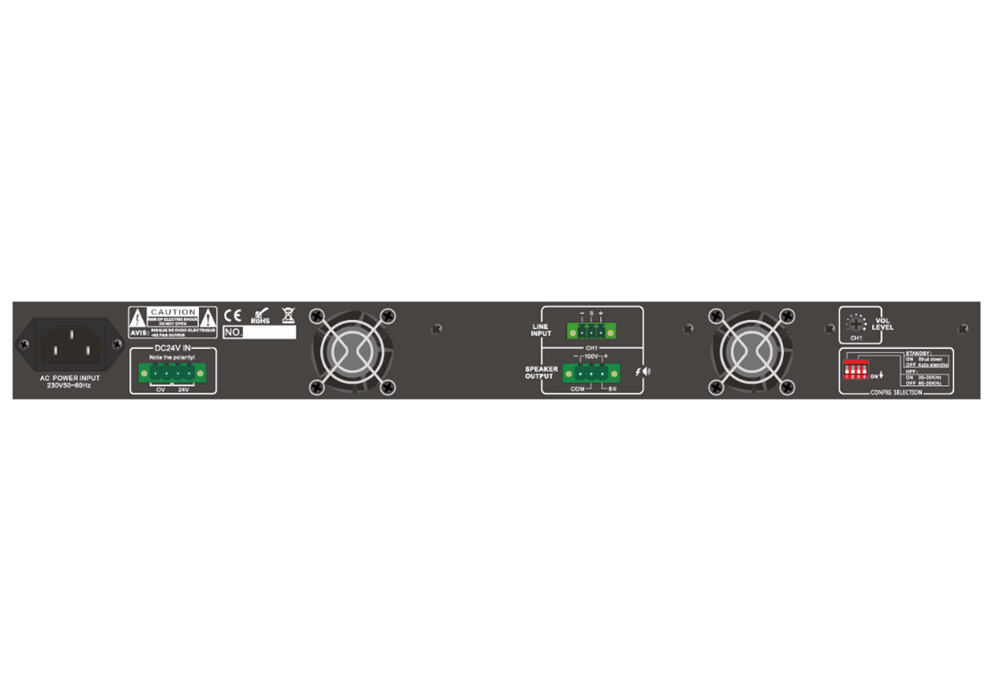

- Separate 8Ω/100V speaker outputs
- Balanced line input via phoenix connector
- Line input with independent gain control.
- Output with high cut filter on/off
- Built-in auto standby on/off function to save power consumption
- Separate indicators for protection, clip, input and output.
- Full protection against short circuit, overload, high temperature, clip and DC
- Wide AC input switchable between 115V and 230V
- Supports 24V DC operating system
Description:
The DA-500 Series Class D digital power amplifier features switched-mode power technology, which features minimal power consumption and significantly higher efficiency of up to 85%, saving rack space and generating less heat to extend its performance. As a result, it also provides a longer lifespan. The DA-500 series power amplifier has a rated output power of 120W, 240W, 350W and 500W, so it could be used as a mixer or preamplifier to set up a PA system or commercial audio system at minimum cost. Versatile 100V high-impedance and 8-ohm low-impedance speaker outputs allow you to perform both fixed PA and high-fidelity stereo sound installation jobs. There are balanced line inputs via Phoenix connector for each channel with gain control. 100V, 8 Ohm speaker outputs. The built-in high-pass filters on the output can be enabled or disabled by DIP switch presetting. Auto standby mode is enabled after no signal input is detected for one minute, it wakes up immediately upon seeing any input. Visual working status indicators include protect, clip, input and output for easy monitoring. With full protection against short circuit, overload, high temperature, clip and DC. Switchable AC power supply from 115V to 230V and 24V DC, so it supports sound system installation worldwide.
