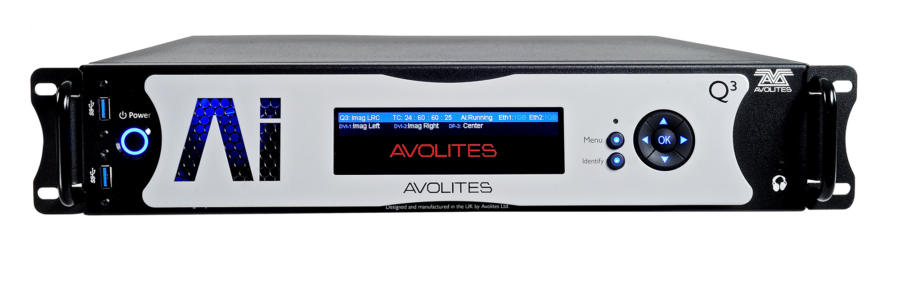

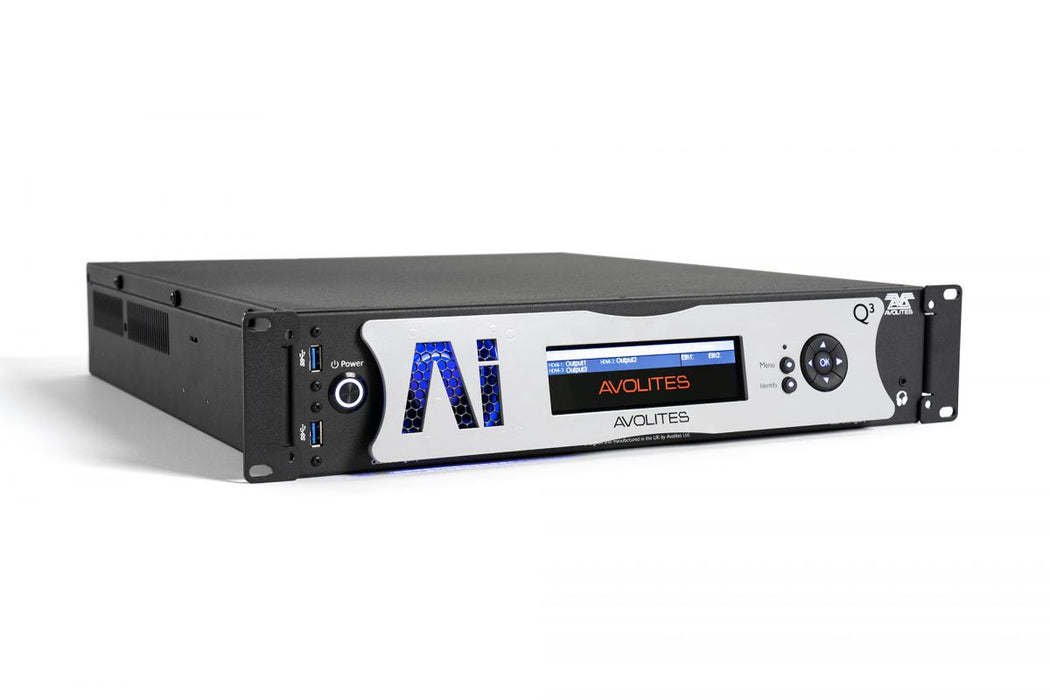

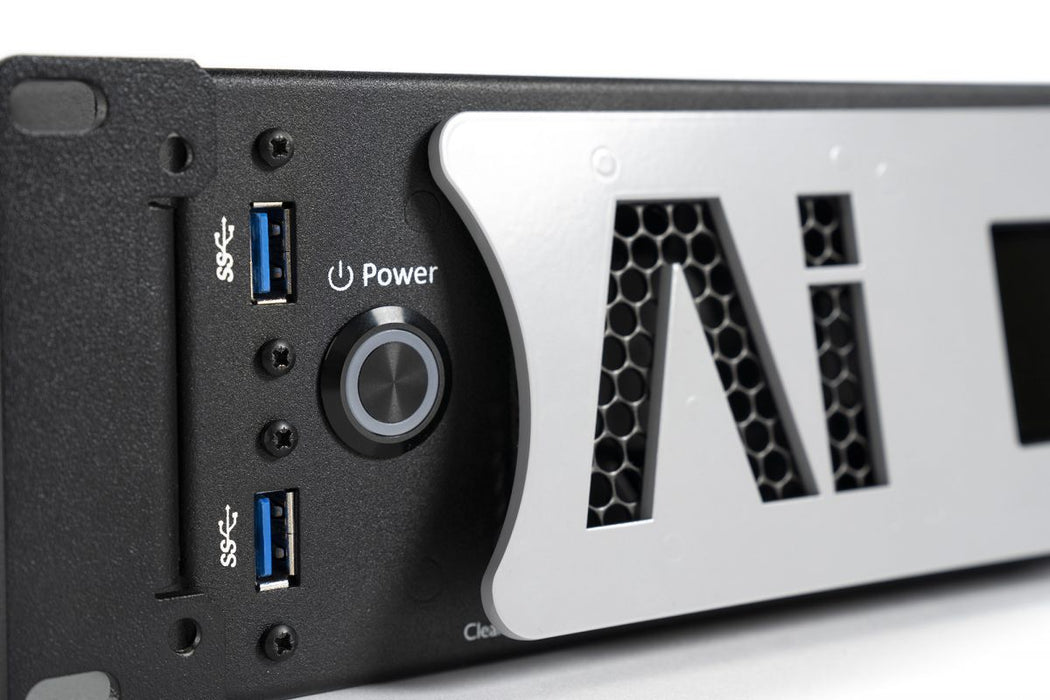

AI Q3 (PZA)
The Avolites Ai Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage, and 1 x 4K and 2 x HD outputs. The Q3 is the perfect solution for powering live events, installations, and any other venue where live video manipulation is required.
- 1 4k output and 2 HD outputs, plus a dedicated GUI output
- Hardware EDID on all outputs
- Front panel display for configuring outputs
1 x 4k and 2 x HD outputs, plus a dedicated GUI output
Hardware EDID on all outputs
Front panel display for configuring outputs

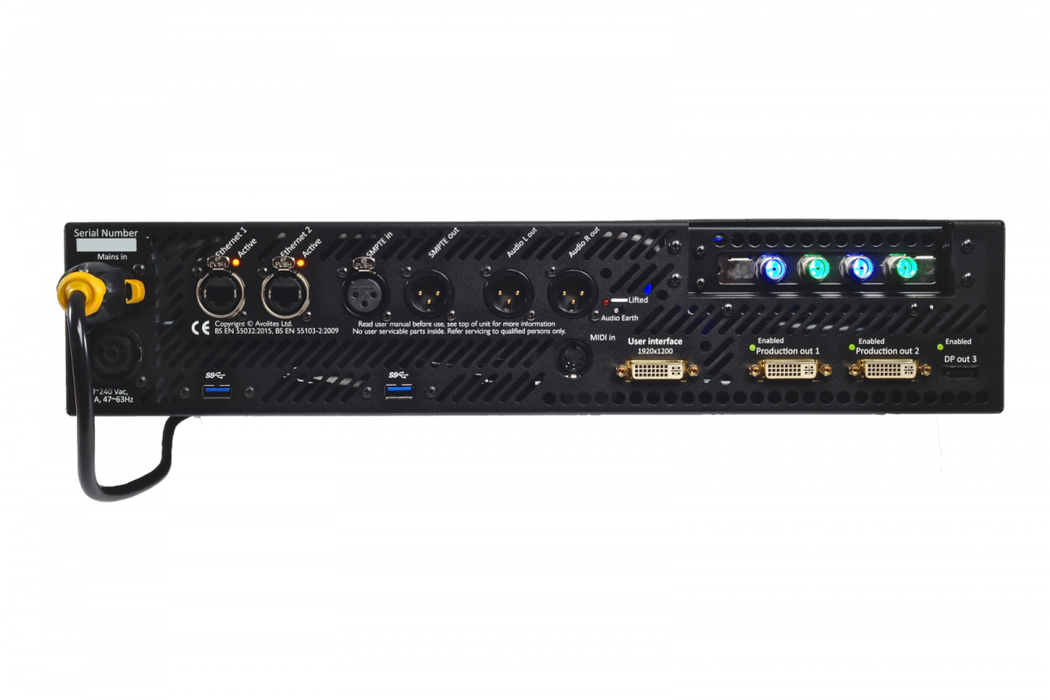

1 x dedicated DVI INTERFACE output @ up to 1920x1200/60
2 HDMI outputs @ up to 1920x1200/60
1 x HD output @ up to 3840x2160/60
Stereo balanced XLR audio output with ground connection
SMPTE XLR input and loop output
1TB High Bandwidth Multimedia Drive - 3500MB/s
Video Sync BNC Genlock (Option)
MIDI input 1x 5-pin DIN
DMX ArtNet and sACN
2 Gigabit LANs on ethernet
PowerCon True1 input/output
Input voltage 100 - 250 V 50/60 Hz auto range
Power consumption 800VA (max.)
