EVO3 Optimum (5.0m)

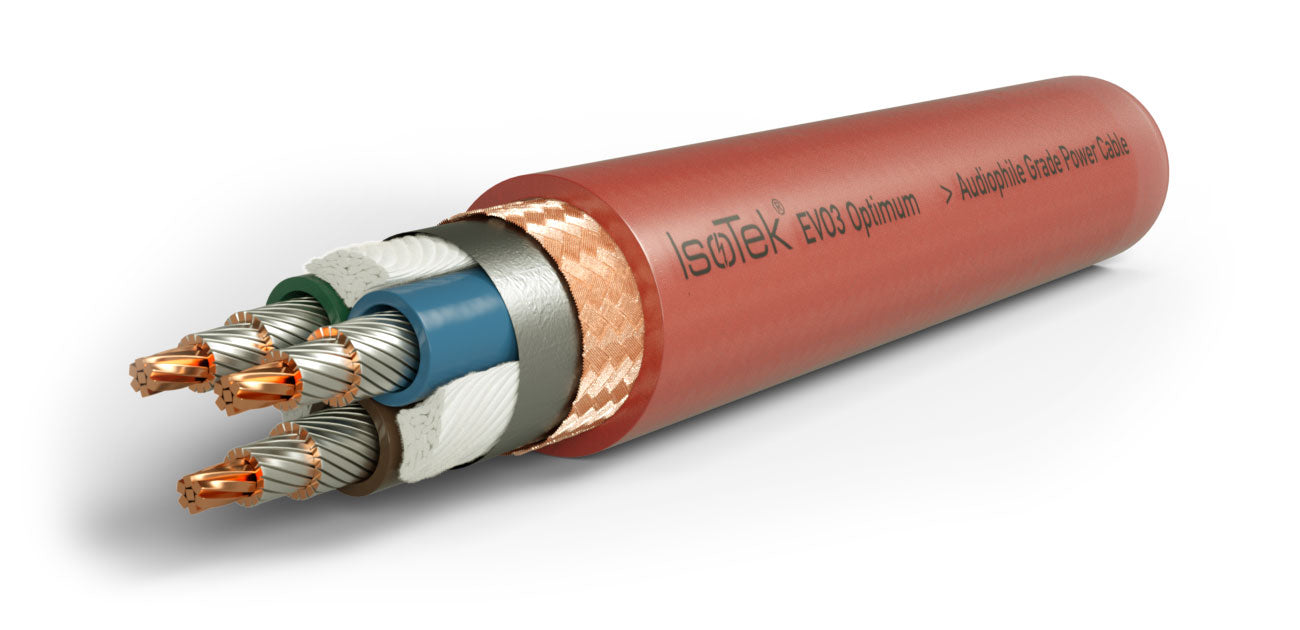

At the core of Optimum are three silver-plated Ohno Continuous Cast Copper (OCC) conductors, with each lead strand having a square configuration for tighter bundling. OCC offers a much higher level of purity with outstanding electrical conductivity, improved flexibility, fatigue and corrosion resistance. A high quality FEP provides a very low dielectric constant over a wide frequency range. All three conductors are given a slight twist to aid RFI and EMI rejection, and are then surrounded by a cotton filler that provides internal resistance and reduces microphonics. The entire construction is encased in a Mylar wrap to provide additional dielectric damping, before an active OFC shield is applied for maximum rejection of high-frequency interference. A durable PVC outer jacket provides a high degree of flexibility and mechanical strength. CONSTRUCTION: Drivers are in a parallel configuration with a slight swivel twist. This established technique remains the first line of defense against RFI and EMI rejection. A) Conductors: 3.0mm2 silver plated Ohno continuous cast copper conductors offer a much higher level of purity compared to traditional OFC. Each lead wire has an innovative square-shaped configuration. The geometry and metallurgy used in this construction offer excellent performance with extremely impressive electrical conductivity. B) Dielectric: FEP Teflon dielectric (insulation) is chemically inert and has a very low dielectric constant over a wide range of frequencies. FEP has a very high degree of resistance to stress cracking and a low coefficient of friction, making it an exceptional dielectric. FEP is the first choice for safety in both temperature and electrical insulation.PZA More features
