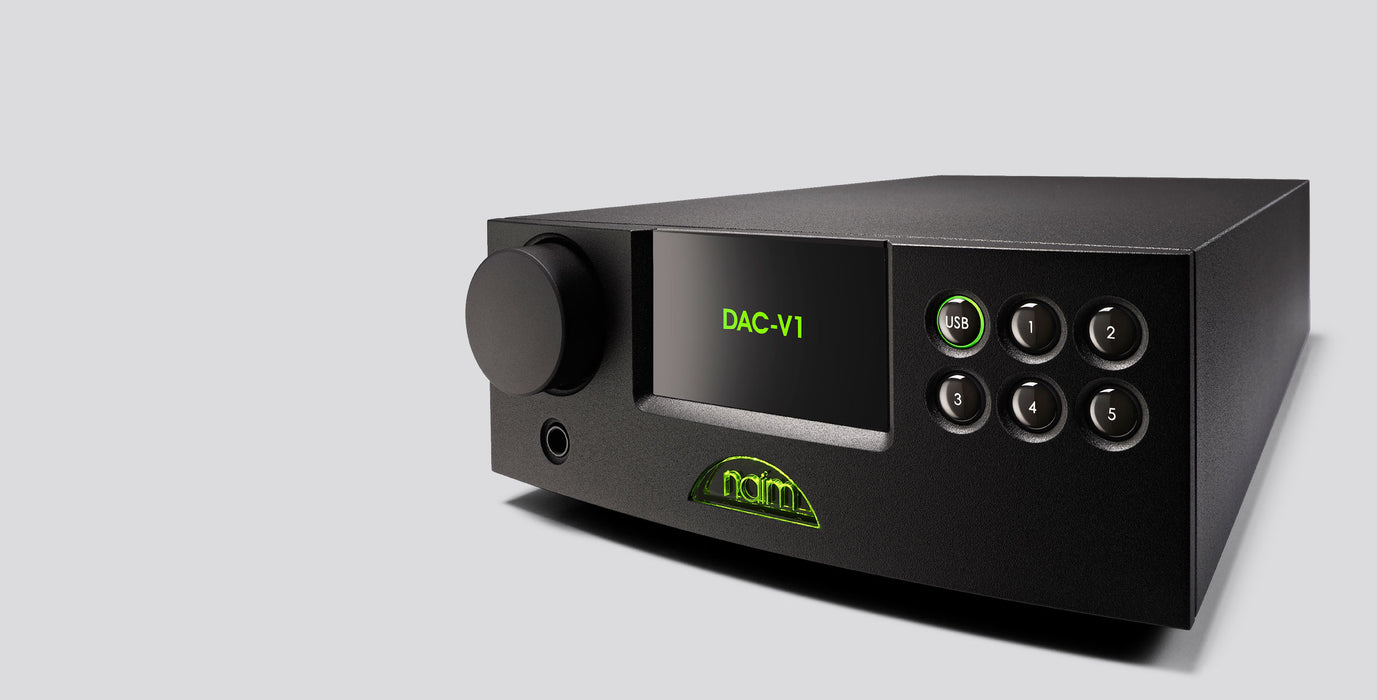

The DAC-V1 is a compact, USB asynchronous converter with
Analog/Digital, with multiple precision S/PDIF inputs, control of
volume and a headphone amplifier.
In combination with the new NAP 100 power amplifier, the DAC-V1
create a compact checkout solution designed for quality
impressive Naim sound from a PC, laptop or Mac via
a simple USB connection. Audio files up to 24bit/384kHz from
resolution can be accessed from a wide variety of applications
audio player, such as iTunes, Windows Media Player and
numerous specialized audio applications. The DAC-V1 converts to a
computer into more than just a convenient audio source, it becomes
in a genuine, High-End, and Hi-Res music distributor.
digital flexibility
While the DAC-V1 is ideal to be placed on a desk or
workstation near a computer, it is also very versatile. HE
can be perfectly integrated into the traditional hi-fi system or
be used with any two-channel digital audio source such as a
game console, satellite receiver, or any other device with digital output, through one of its five digital S/PDIF inputs. Also, the
DAC-V1 and NAP 100 can also be combined with Naim server
UnitiServe music server to create a high-end music system
compact.
Asynchronous USB input
The DAC-V1 features an asynchronous USB input allowing you to
connect directly to a computer. The DAC-V1 has the ability to
detect bit-perfect performance and thus ensure the sent audio
from the computer is received unchanged. Being asynchronous guarantees the
DAC-V1 that does not depend on computer clock synchronization, but
that controls when the computer sends data. The audio data is
supplied to the DAC-V1's audio buffer and the rate of
Clocking is carried out using the built-in clock circuit with precision the
which is free of clock jitter related to the
computing - to digital to analog converter circuits.
High-End Headphone Amplifier
The DAC-V1 features a high-quality headphone amplifier with
a low impedance single-ended Class-A output of the
converter for customers who wish to listen through
headphones. Features low distortion, ensuring a natural sound
flowing, musical The headphone amp runs from high-end vias
voltage that allow you to effortlessly drive high-quality and high-quality headphones.
high impedance, avoiding the need for a power amplifier and
speakers for personal listening.
Main Features
DAC-V1
1 x Asynchronous USB input up to 24bit/384kHz
5 x S/PDIF Inputs up to 24bit/192kHz (1 x BNC, 2 X RCA, 2 x TOSLINK)
Selectable, fixed or variable audio output (DIN or RCA)
Zero S/PDIF Jitter design with Naim DAC
Naim custom design for Digital filter and with 16x oversampling
Implemented with SHARC ADSP21489 DSP for scaling with digital filter
custom and zero jitter S/PDIF
Classic Naim discrete preamp, with gain stage topology
with selected components
High quality Burr Brown PCM1791A DAC, Common with Naim NDX and SuperUniti
Built-in Class A headphone amplifier with ¼ in. output. panel
frontal
Galvanic isolation – isolation between digital and analog sections
Analog Volume Control, digitally controlled for greater
precision performance
Linear transformer with 210VA, with separate vanes for Digital, DAC and stages
analog
Works with computers running OSX, 10.7 and later, Windows 7 and 8
(up to 24bit/384kHz),
Windows XP (up to 24bit/192kHz)
Floating or chassis ground switch, for optimal performance with any
system
upgradable firmware
OLED screen for settings and sampling display
Control by IR remote control or front panel control, as well as control from
computer
Low resonance non-magnetic compact enclosure.PZA MORE SPECS
