Analog Wall Mixer (PZA)
3x1 analog mic/line/BT/AUX indoor/outdoor wall mixer with optional Dante® audio network interface

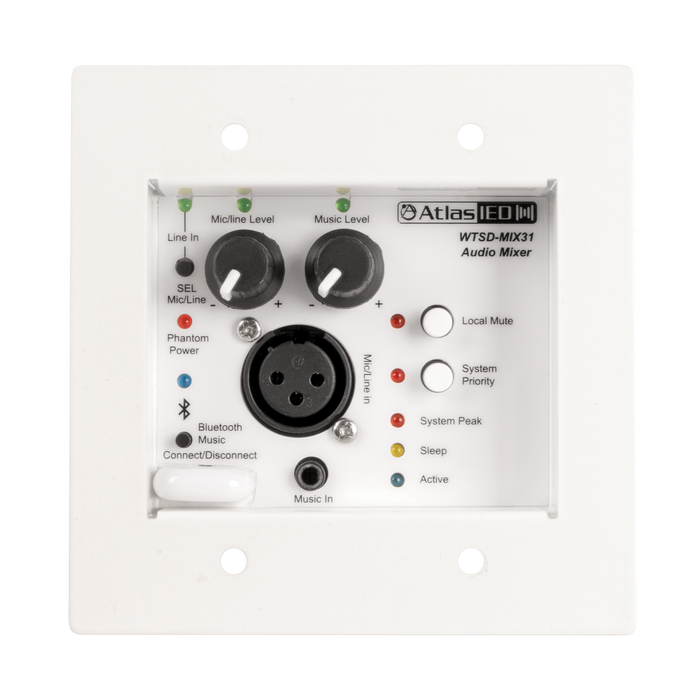

The WTSD-MIX31K is a 3x1 analog mic/line/aux/Bluetooth mixer featuring a balanced mic/line input and a 3.5mm auxiliary input with Bluetooth, plus a balanced line output. The WTSD-MIX31K uses commercial-grade Bluetooth technology, delivering ultra-low noise, long-range connectivity, no auto-connection, and a quick disconnect function. The Bluetooth Discovery ID name can be customized using the Installer Rename application. Selection between microphone or line level for the XLR input is made by a switch on the front panel, accessed through a hole. The high-gain microphone inputs feature user-enabled phantom power for condenser microphones and a 125 Hz low-cut filter to eliminate unwanted low-frequency interference. A local mute button silences the output to the bus, and a system priority button can mute the entire building's BGM systems to isolate the room. An adjustable VOX function allows you to mute the background audio from the AUX input when announcements are present. The AUX input is a 3.5mm stereo jack and is electronically summed for optimal audio performance. Separate level controls for each input provide control for the required audio mix.

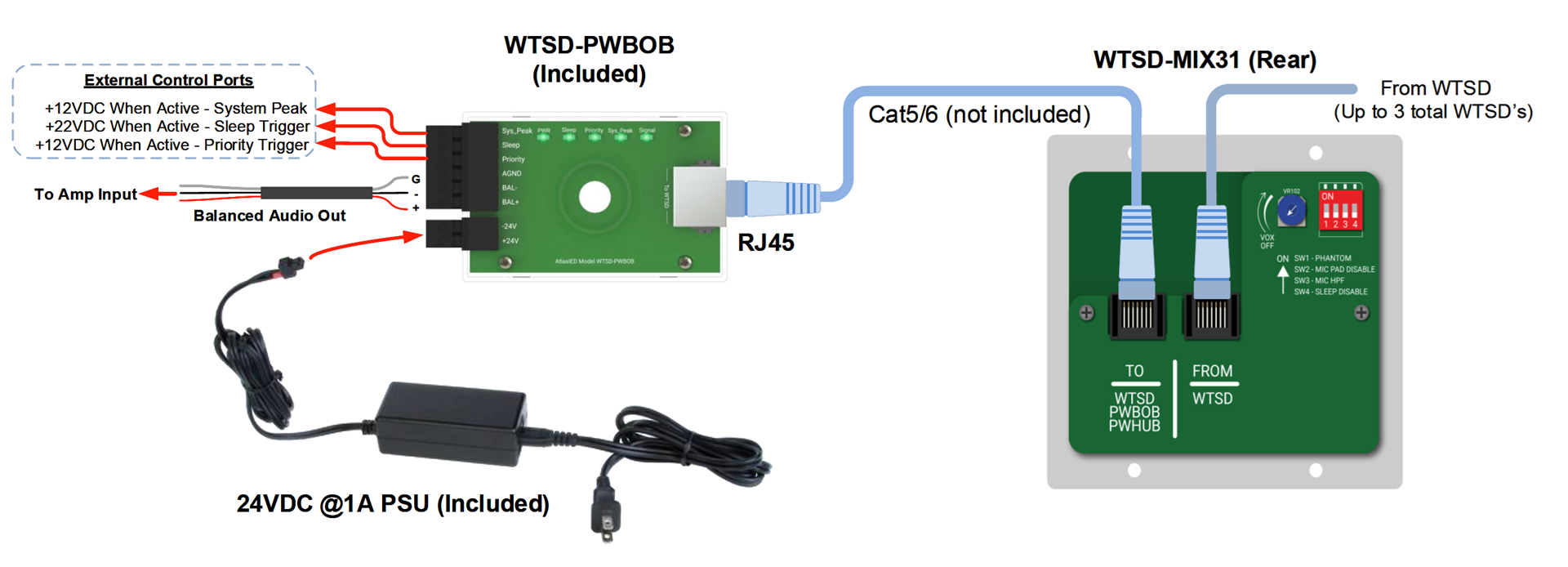

The WTSD-PWBOB comes with each unit and features a balanced audio output with signal, mute, system priority and power LEDs and a 12V DC logic output for remote system muting or power sequencing.
The WTSD-MIX31K can be converted to Dante® digital network audio when connects with the optional AtlasIED TSD-DAC2i converter.
CHARACTERISTICS
- Indoor/outdoor use

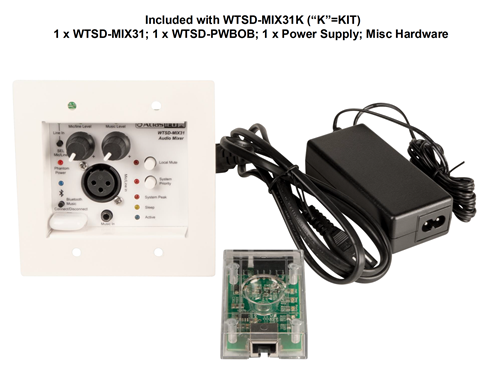

- Power supply and WTSD-PWBOB interface included
- Balanced XLR microphone or line input with individual level controls
- 3.5mm stereo input with active summing and level control
- Commercial-grade Bluetooth input with level control
- The name of the Bluetooth discovery ID can be customized
- Fits most 2-pack boxes

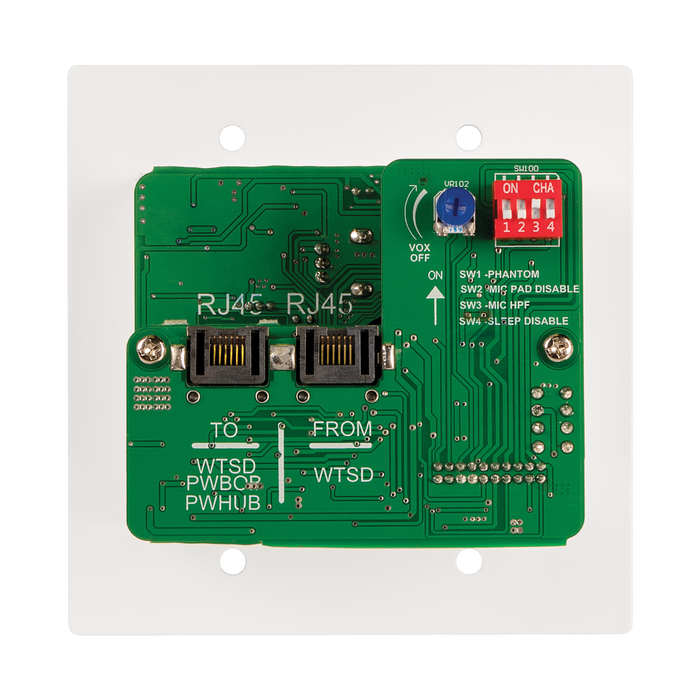

- Uses industry-standard Cat5 or Cat6 cable
- High gain balanced line output for 400 ft applications.
- Linkable with other WTSD mixers on the same BUSS
- WTSD-COVER Waterproof Stainless Steel Lock Cover (Optional)
- Remote trigger output for remote amplifier turn-on
- System priority mute function
- Dante® TSD-DAC2i Analog to Digital Audio Transmitter (Optional)
- Automatic power-saving sleep mode

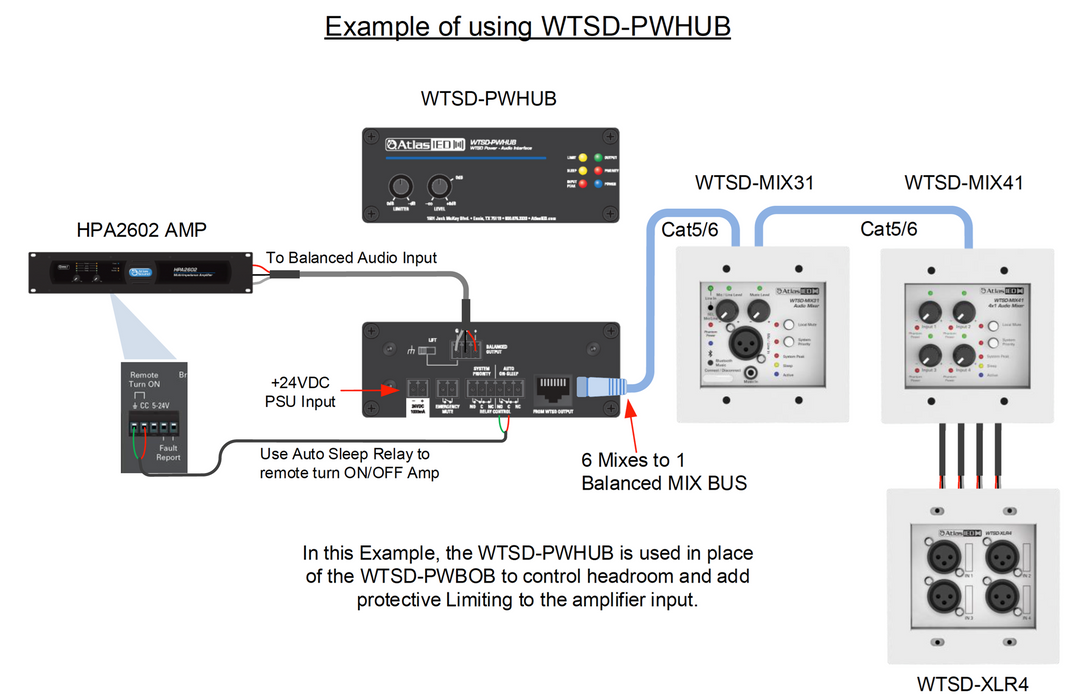

- WTSD-PWHUB receiver with limiter and isolated relays and emergency silencer (optional)
