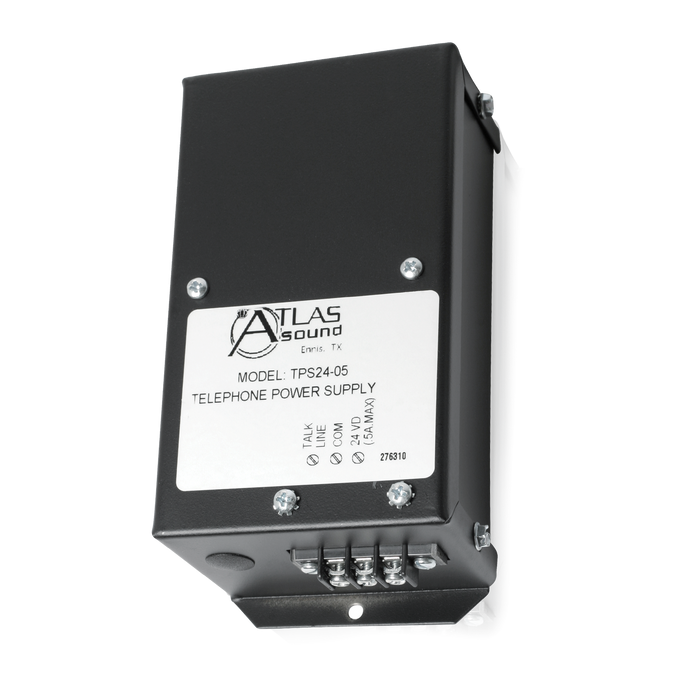

Telephone power supply with conversation line
PS/RPS/TPS Series. This broad selection of power supplies has been developed to meet the application requirements and operating parameters of ranges commonly used in communications equipment. To protect against excessive line currents, all models are fused or protected by a circuit breaker on the primary side. Most units also contain fast-acting fuses located on the output to protect circuits from accidental overloads. Barrier output terminals allow easy wire insertion and protect against short-circuited connections.
The compact size and light weight lend themselves to convenient installation almost anywhere. Wall mounting is easily achieved using mounting ears on the 6 3/4" L models or keyhole slots on the chassis of the larger models.
Model PS-12-10. Compact 12 VDC (1 amp) power supply designed for use with up to 12 switched WhisperTouch® volume controls.
Model PS-M12. The compact 12 VDC (200 mA) power supply has a 1/8" mini plug for direct connection to the
Model TS-242. This UL-listed unit is used for a variety of applications that do not require a regulated supply. The model includes a 117 VAC unswitched receptacle, neon pilot light, barrier terminals, and a perforated grille for ventilation. It is finished in black epoxy. The unit can be rack-mounted using the PS-RK model.
-
5 Amp output at 24 VDC
-
Compact size and light weight
-
Barrier strip output terminals
-
Wall mounting is easily achieved using mounting ears
- Fused to protect against excessive line currents
